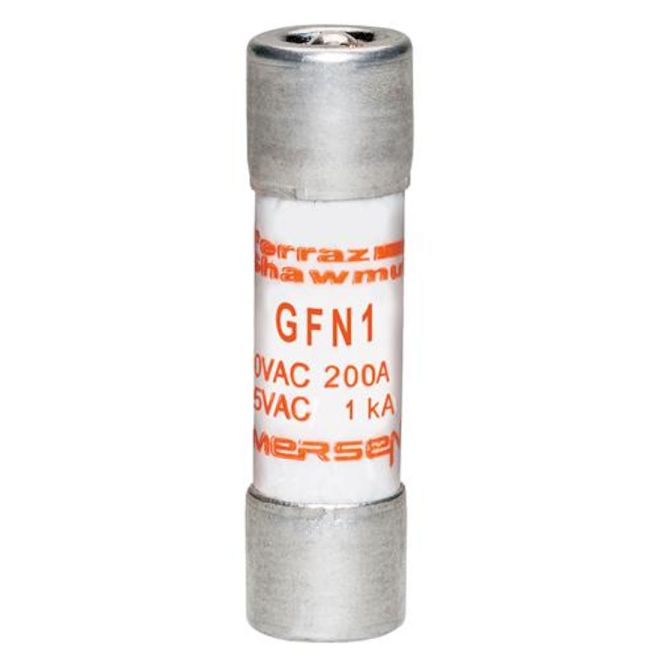

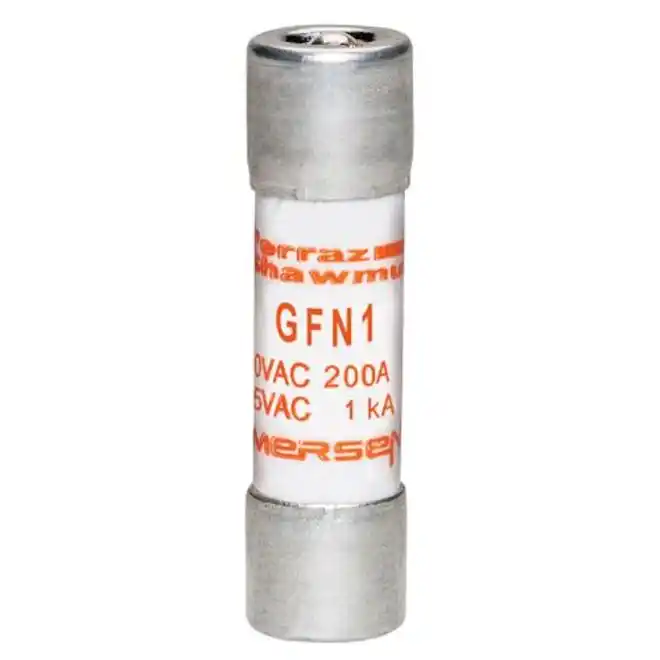

Mersen GFN1 Ferraz Midget Time Delay Fuse R216767
SKU#:
27434
Mersen GFN midget indicating fuses are available in ratings from 1/10 through 30A. GFN1 time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated to open the circuit. Indicators may be used to trip a switch for remote as well as visual annunciation. (Not for Branch Circuit Protection). Ferraz Shawmut GFN1 is comparable to Eaton Cooper Bussmann FNA-1.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | GFN1 |
| Manufacturer Alternate Number | R216767 |
| UPC | 782001761592 |
| Rated Voltage AC | 250VAC |
| Rated Current | 1A |
| Fuse Class | Midget |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Indicator | Yes |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Poly Tube |
| Type | Time Delay Midget |
| Height (mm) | 11mm (0.43") |
| Width (mm) | 11mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
