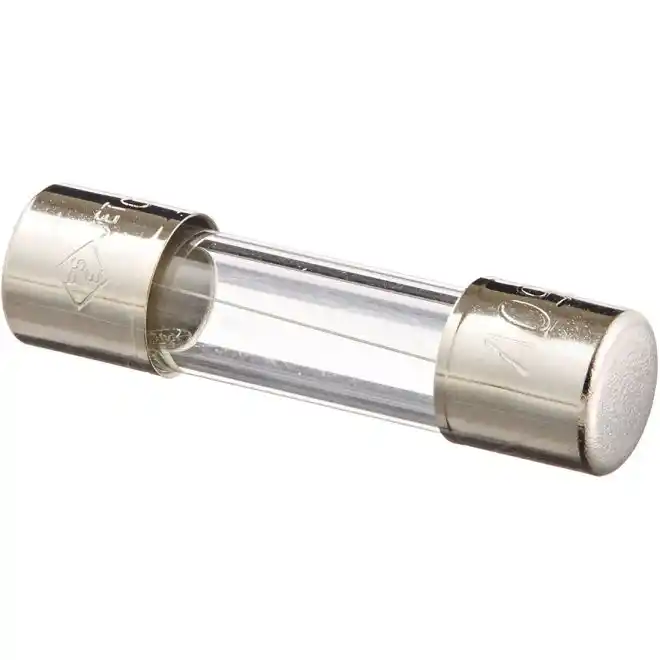

Mersen GGX2 Ferraz Miniature Fast-Acting Fuse 2A
SKU#:
27730
Mersen cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits. GGX2 glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | GGX2 |
| UPC | 782001761127 |
| Rated Voltage AC | 250VAC |
| Rated Current | 2A |
| RoHS Compliant | Yes |
| Fuse Class | Supplemental |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Terminal Type | Ferrule |
| Body/Insulating Material | Ceramic |
| Type | Fast Acting |
| Height (mm) | 7mm |
| Width (mm) | 7mm |
| Depth (Length) (mm) | 26mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
