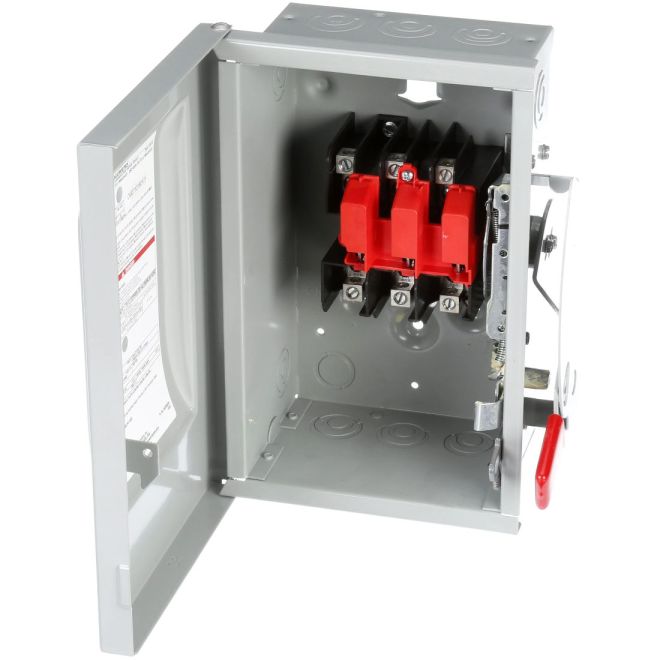

SIEMENS GNF322 General Duty Safety Switches 60A UL
SKU#:
303745
General duty switches feature a time-proven design like Vacu-Break, SIEMENS VBII double-break switching action breaks the arc in two places. This reduces heat generation and increases switching speed by doubling the breaking distance. The result is enhanced performance and increased longevity. All GNF322 VB II safety switches have been tested not only to meet but to exceed all UL requirements. Defeatable cover interlocks on 100A - 600A to prevent the switch door from being opened when in the ON position. NEMA 1 enclosures are intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | GNF322 |
| UPC | 783643149137 |
| Rated Voltage AC | 240VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 60A |
| Number of Poles | 3 |
| Mounting Type | Surface |
| Type | General Duty |
| UL Rating Type | NEMA 1 |
| Height (mm) | 313mm |
| Width (mm) | 221mm |
| Depth (Length) (mm) | 219mm |
| Weight (lbs) | 12.01 |
| UOM | ea |
