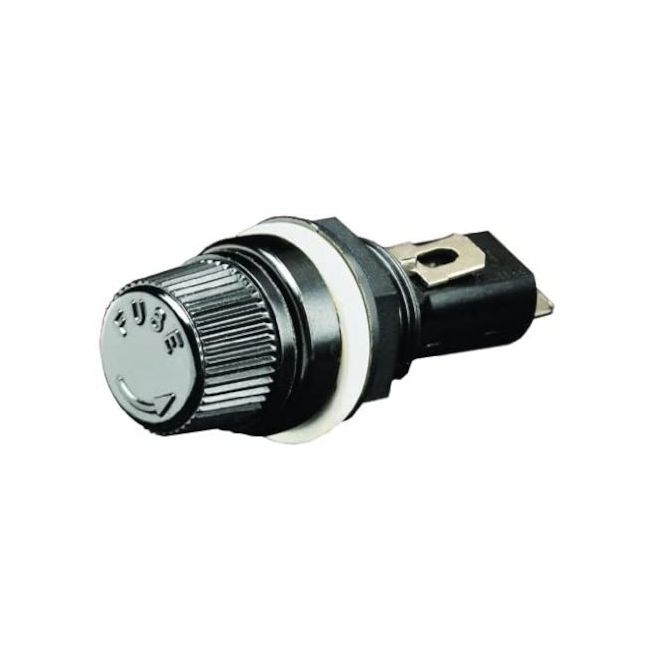

Mersen GPM-G Ferraz Panel Mount Fuse Holder 30A
SKU#:
110860
Mersen GPM panel mount fuse holders are in sizes to accommodate Class CC and midget (1-1/2" x 13/32") fuses. All GPM-G 30A holders have glass-filled thermoplastic insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. GPM-G's flange design allows front or rear mounting.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | GPM-G |
| Manufacturer Alternate Number | G213952 |
| UPC | 782001760625 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 15A |
| RoHS Compliant | Yes |
| Body/Insulating Material | Thermoplastic, Polycarbonate |
| Number of Poles | 1 |
| Height (mm) | 52mm |
| Width (mm) | 19mm |
| Depth (Length) (mm) | 19mm |
| Weight (lbs) | 0.10 |
| UOM | ea |
