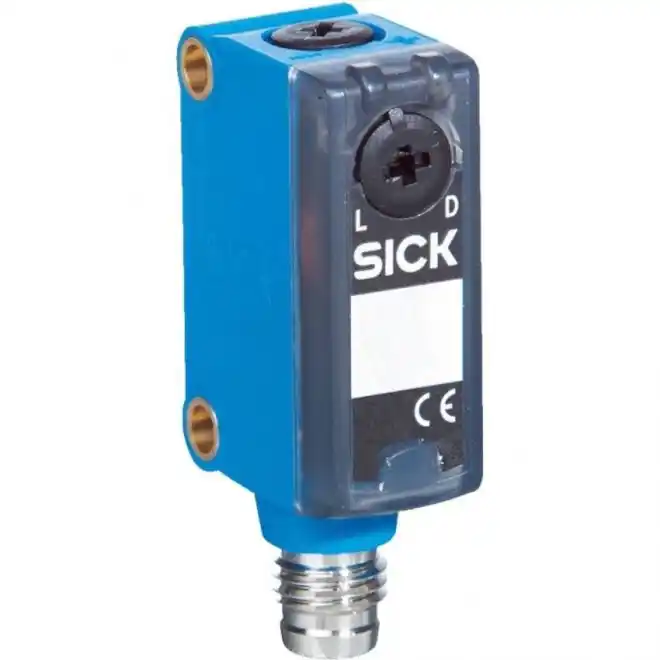

SICK GTE6-P4211 1050710 Photoelectric Sensors
SKU#:
443946
SICK photoelectric sensors in the G6 product family with their miniature housings will impress you across the board with both their standard mounting configuration of 1-inch spaced holes and also their functional characteristics. The variants with a stainless steel 1.4404 (316L) housing are especially resistant to chemicals and cleaning agents in washdown applications. With PinPoint LED and laser technology, metal inserts for mounting, large and bright indicator LEDs, user-friendly adjustment screws, IP67 and IP69K enclosure ratings, as well as the very latest ASIC technology from SICK, the G6 series far exceeds the current standard.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | GTE6-P4211 |
| Manufacturer Alternate Number | 1050710 |
| Body Type | Rectangular |
| Type | Photoelectric Proximity, Energetic |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, ABS |
| Sensing Method | Diffuse |
| Sensing Range | 300mm |
| Output Type | PNP |
| Output Function | Light/Dark Switching |
| Light Source | Red LED |
| Electrical Connection | Male Connector M8, 4-pin |
| IP Rating | IP67 |
| Height (mm) | 31.5mm |
| Width (mm) | 12mm |
| Depth (Length) (mm) | 21mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
