Mersen GW10 Ferraz UL/CSA Listed Power Fuse 10A
SKU#:
111048

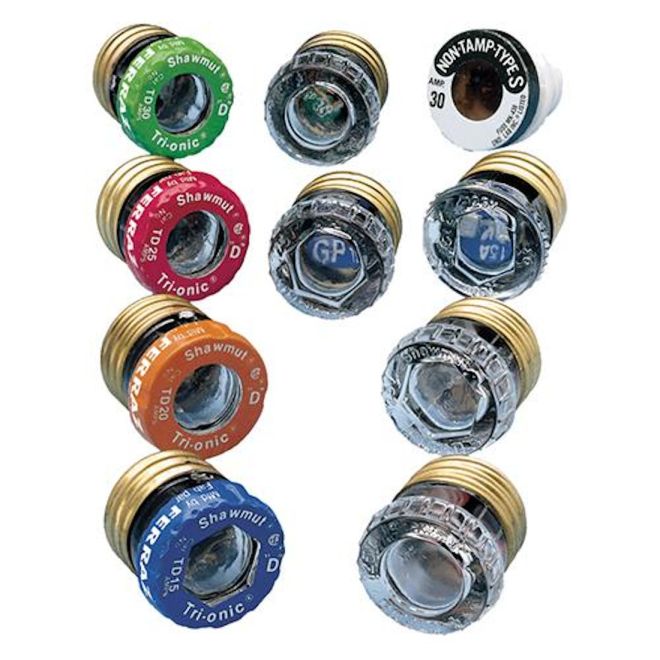

Mersen Plug Fuses are for industrial and residential applications. GW10 standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type "P" fuse is used for non-motor loads and type "D" fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type "S" plug fuses are time delay and tamper-resistant. Ferraz Shawmut GW10 is comparable to Eaton Cooper Bussmann W-10.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | GW10 |
| UPC | 6893879332 |
| Rated Voltage AC | 125VAC |
| Rated Current | 10A |
| Fuse Class | Plug |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Screw |
| Short Circuit Current Rating (SCCR) | 10kA |
| Indicator | Yes |
| Connection/Terminal Material | Brass |
| Terminal Type | Screw Terminal |
| Body/Insulating Material | Glass |
| Type | Fast Acting |
| Height (mm) | 29mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 33mm |
| Weight (lbs) | 0.06 |
| UOM | ea |
