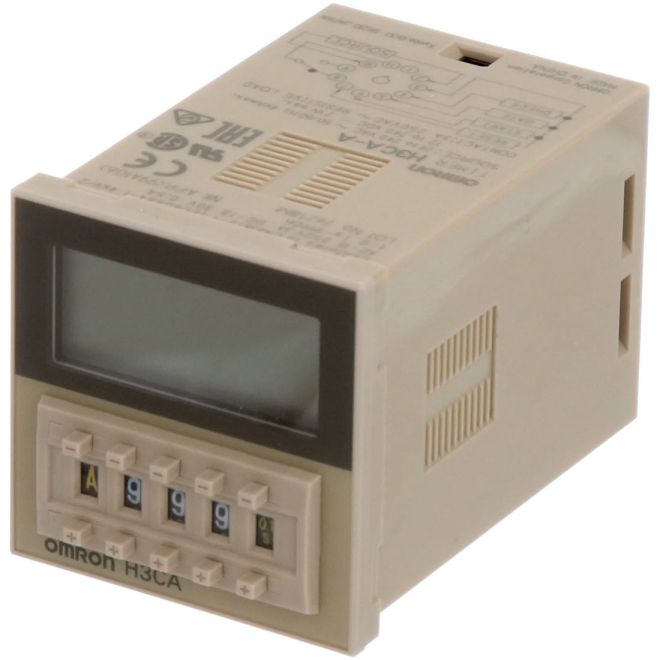

Omron H3CA-A SPDT 24-240VAC and 12-240VDC Timer
SKU#:
3497
Omron H3CA is a DIN-sized (48 x 48, 45 x 75 mm) timer with digital setting and LCD display. Dual power supplies for free AC/DC. Eight operation modes selectable with one unit. Any desired time can be set digitally within a range from 0.1 seconds to 9,990 hrs. Four external signal inputs. ON/OFF indicator for control output and bar indicator for remaining time. H3CA-A conforms to UL, CSA, and CE marking. Omron H3CA-A is comparable to Schneider Magnecraft TDRPRO-5100, TDRPRO-5000, TE Connectivity Tyco Schrack Potter & Brumfield CNM5, Square D 9050JCK70V14.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3CA-A |
| Manufacturer Alternate Number | H3CAA |
| UPC | 4536853497460 |
| Supply Voltage Range | 24VAC - 240VAC, 12VDC - 240VDC |
| Contact Arrangement | SPDT (1 Form C) |
| Display | LCD Bar Graph, LED Indicators |
| Time Ranges | 0.01Sec - 9990Hrs |
| Setting Method | Pushwheel Switches |
| Resetting Method | Self Resetting/External Resetting |
| Number of Operating Modes | 8 |
| ON-Delay Mode | Yes |
| Repeat Cycle OFF Start Mode | Yes |
| Repeat Cycle ON Start Mode | No |
| Signal ON/OFF Delay Mode | Yes |
| Signal OFF Delay Mode | Yes |
| Interval Mode | Yes |
| One-Shot Output Mode | Yes |
| Power OFF Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | No |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | SPDT (Time-Limit) |
| Terminal Type | Plug-in, 11 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 11-Pin Socket |
| Height (mm) | 45mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 86.3mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
