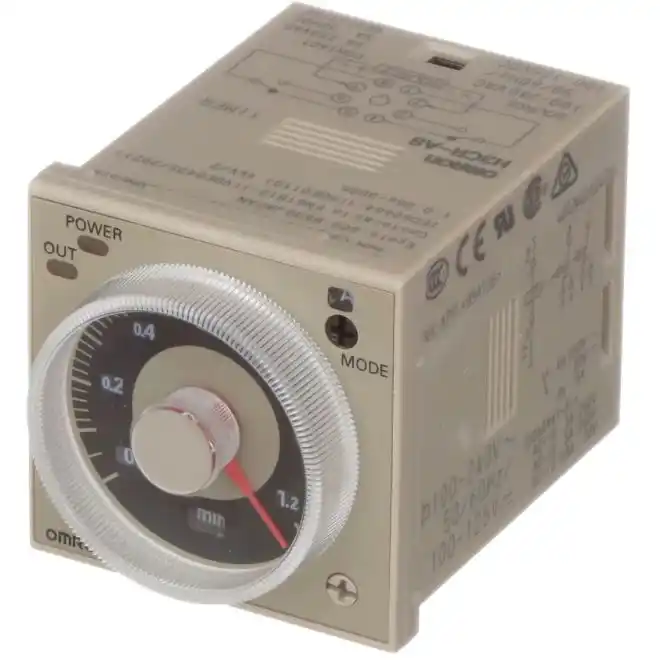

Omron H3CR-A8 AC100-240/DC100-125 SS Timer
SKU#:
142087
Omron H3CR-A DIN 48 x 48-mm multifunctional timer offers multiple operating modes and multiple time ranges. A wide AC/DC power supply range greatly reduces the number of timer models kept in stock. A wide range of applications with multiple operating modes, eight modes for 11-pin models and five modes for 8-pin models. Ecological design with reduced current consumption. Easy sequence checking with instantaneous outputs for a zero set value. Length of 75 mm or less when panel-mounted with a P3G-08 socket (H3CR-A8E, 100 to 240 VAC, 100 to 125 VDC). PNP input models available. H3CR-A8 AC100-240/DC100-125 supports standards: UL, CSA, NK, LR, CCC, EN 61812-1, and CE Marking. Omron H3CR-A8 AC100-240/DC100-125 is comparable to Eaton Cutler Hammer TRN2P120AC, Syrelec Crouzet OARU110.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3CR-A8 AC100-240/DC100-125 |
| Manufacturer Alternate Number | H3CRA8AC100240DC100125 |
| UPC | 4548583553316 |
| Supply Voltage Range | 100VAC - 240VAC, 100VDC - 125VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Display | LED Indicators |
| Time Ranges | 0.05Sec - 300Hrs |
| Setting Method | Analog Dial |
| Resetting Method | Power Reset |
| Number of Operating Modes | 5 |
| ON-Delay Mode | Yes |
| Repeat Cycle OFF Start Mode | No |
| Repeat Cycle ON Start Mode | Yes |
| Signal ON/OFF Delay Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | Yes |
| One-Shot Output Mode | Yes |
| Power OFF Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | No |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | DPDT (Time-Limit) |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | No-Voltage Input or Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 45mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 82mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
