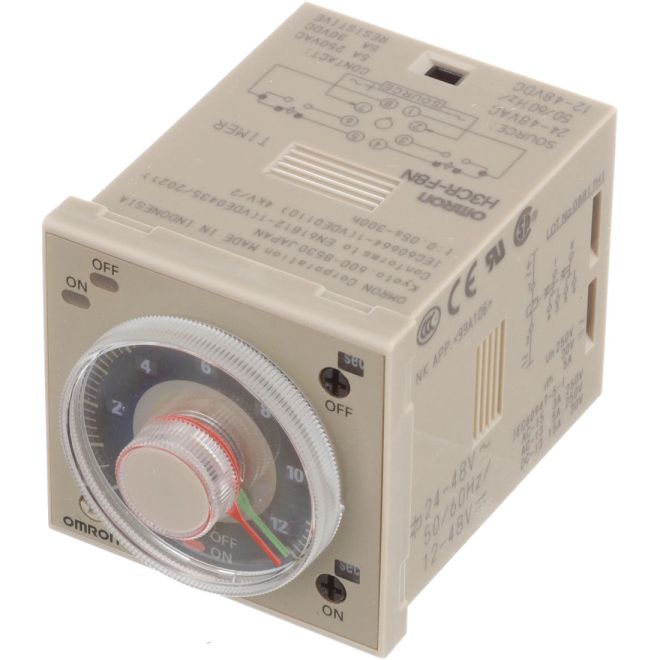

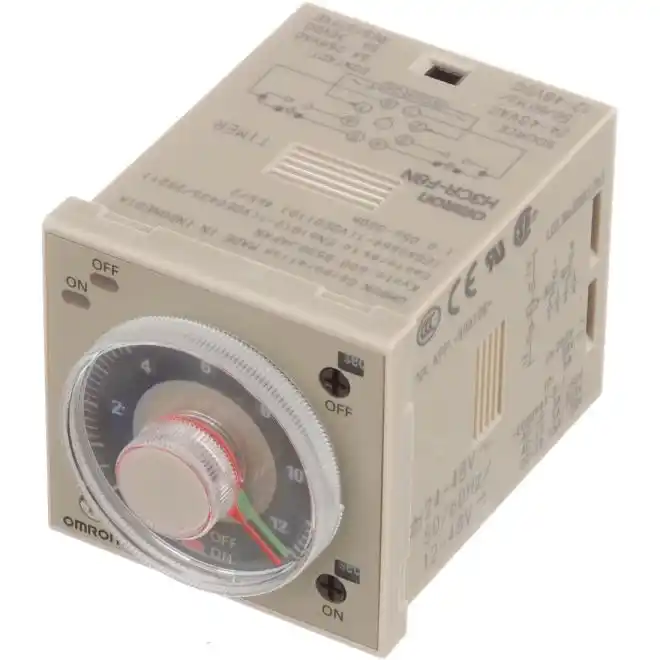

Omron H3CR-F8N AC24-48/DC12-48 SS Twin Timer
SKU#:
420828
Omron H3CR-F is a DIN 48 × 48-mm twin timer. Wide power supply ranges of high voltage 100 to 240 VAC/100 to 125 VDC and low voltage 24 to 48 VAC/12 to 48 VDC. ON- and OFF-times can be set independently and so combinations of long ON- or OFF-time and short OFF- or ON time settings are possible. Twenty-four time ranges from 0.05 s to 300 h depending on the model to be used. Models with a flicker ON start or flicker OFF start are available. H3CR-F8N AC24-48/DC12-48 supports easy sequence checks through instantaneous outputs for a zero set value at any time range. Length, when panel-mounted with a Socket, of 80 mm or less. 11-pin and 8-pin models are available.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3CR-F8N AC24-48/DC12-48 |
| Manufacturer Alternate Number | H3CRF8NAC2448DC1248 |
| UPC | 4548583552838 |
| Supply Voltage Range | 24VAC - 48VAC, 12VDC - 48VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Display | LED Indicators |
| Time Ranges | 1.2Sec - 300Hrs |
| Setting Method | Analog Dial |
| Resetting Method | Time Limit or Self Reset |
| Number of Operating Modes | 1 |
| ON-Delay Mode | No |
| Repeat Cycle OFF Start Mode | No |
| Repeat Cycle ON Start Mode | No |
| Signal ON/OFF Delay Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | No |
| One-Shot Output Mode | No |
| Power OFF Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | Yes |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | DPDT |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 45mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 82mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
