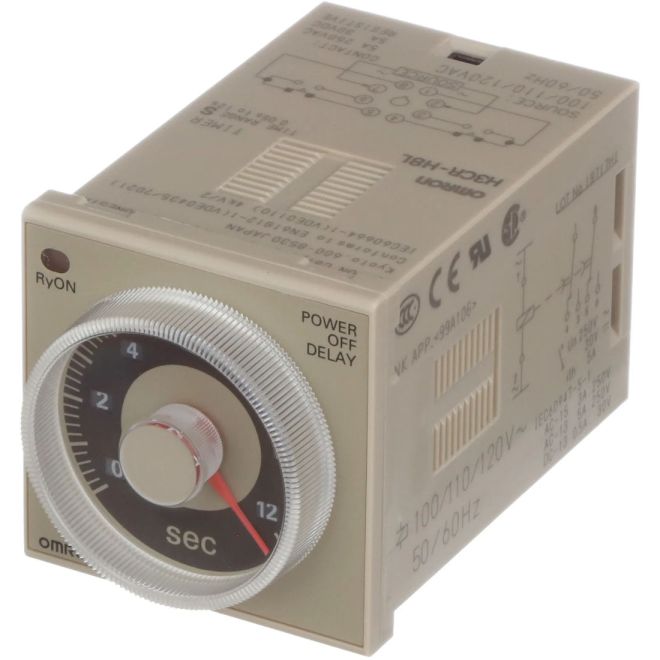

Omron H3CR-H8L AC100-120 S SS OFF-Delay Timer
SKU#:
3508
Omron H3CR-H is a DIN 48 x 48-mm power OFF-delay timer. Long power OFF-delay times; S-series: up to 12 seconds, M-series: up to 12 minutes. Models with forced-reset input are available. 11-pin and 8-pin models are available. Do not use the H3CR-H8L AC100-120 S timer with a repeat period of less than 3 s.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3CR-H8L AC100-120 S |
| Manufacturer Alternate Number | H3CRH8LAC100120S |
| UPC | 4548583553019 |
| Supply Voltage Range | 100VAC - 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Display | LED Indicators |
| Time Ranges | 0.05Sec - 12Sec |
| Setting Method | Analog Dial |
| Resetting Method | Self Reset |
| Number of Operating Modes | 1 |
| ON-Delay Mode | No |
| Repeat Cycle OFF Start Mode | No |
| Repeat Cycle ON Start Mode | No |
| Signal ON/OFF Delay Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | No |
| One-Shot Output Mode | No |
| Power OFF Delay | Yes |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | No |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | DPDT |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 45mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 82mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
