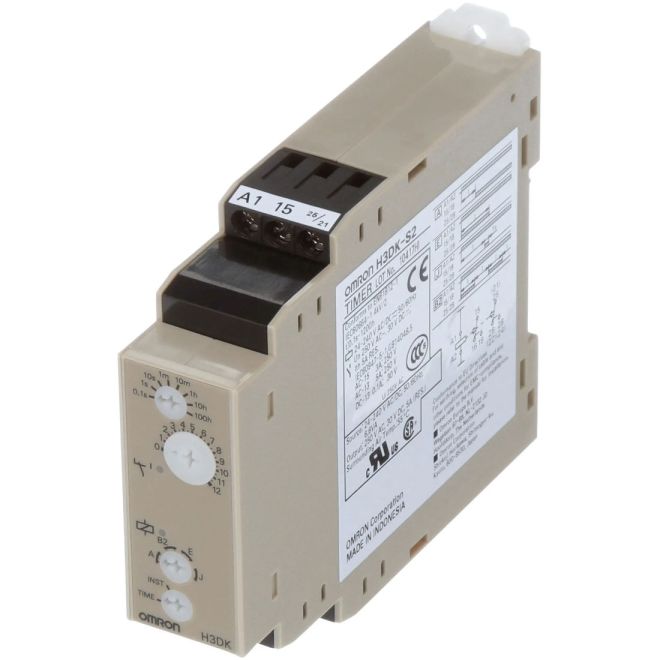

Omron H3DK-S2 AC/DC24-240 Multi-Range/Mode Timer
SKU#:
418322
Omron H3DK product family offers 4 series of timers which range from single operation mode to multi-functional operational modes. Models like H3DK-S2 AC/DC24-240 include a wide-range power supply input from 24 to 240 VAC/DC or models 12 VDC.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3DK-S2 AC/DC24-240 |
| Manufacturer Alternate Number | H3DKS2ACDC24240 |
| UPC | 4548583744998 |
| Supply Voltage Range | 24VDC - 240VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Display | LED Indicators |
| Time Ranges | 0.1Sec - 100Hrs |
| Setting Method | Analog Dial |
| Resetting Method | Self Reset |
| Number of Operating Modes | 4 |
| ON-Delay Mode | Yes |
| Repeat Cycle OFF Start Mode | No |
| Repeat Cycle ON Start Mode | No |
| Signal ON/OFF Delay Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | Yes |
| One-Shot Output Mode | Yes |
| Power OFF Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | Yes |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | DPDT |
| Terminal Type | Screw Terminal |
| Input Type | Voltage Input |
| Mounting Type | DIN Rail |
| Electrical Connection | Screw Terminals |
| Height (mm) | 79mm |
| Width (mm) | 22.5mm |
| Depth (Length) (mm) | 100mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
