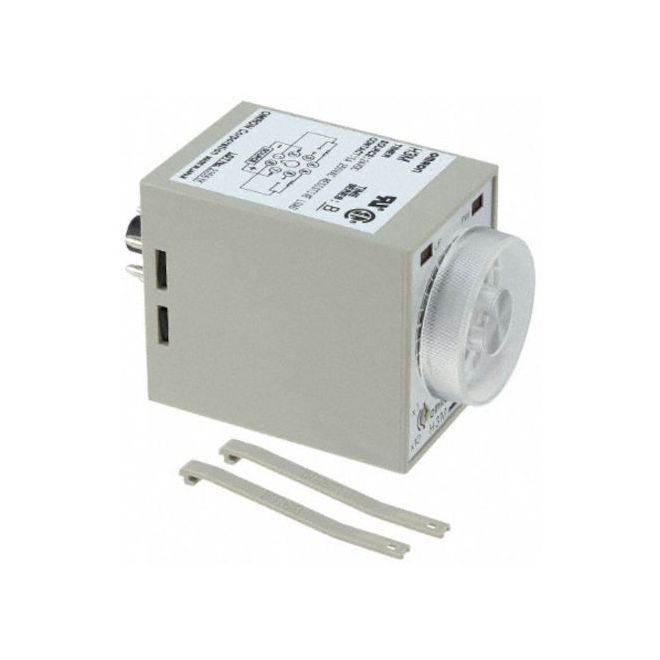

Omron H3M-AC120-A DPDT 120VAC Solid State Timer
SKU#:
211535
Omron H3M is a solid-state timer with variable time ranges. Four time ranges are selectable per timer unit. Wide timing range of 0.05 second to 30 hours can be covered by a combination of five timer units. Standard surface mounting type is easily convertible to flush mounting type with the use of a special adapter (Y92F-40). H3M-AC120-A requires only 40 x 50 mm for mounting space. Equipped with power-ON & time-out indicators. All standard models approved by UL, CSA, and LR.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3M-AC120-A |
| Manufacturer Alternate Number | H3MAC120A |
| UPC | 4536853508432 |
| Supply Voltage Range | 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Display | LED Indicators |
| Time Ranges | 0.05Sec - 5Min |
| Setting Method | Analog Dial |
| Output Type | DPDT |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 50mm (1.97") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 81mm |
| Weight (lbs) | 0.22 |
| UOM | ea |
