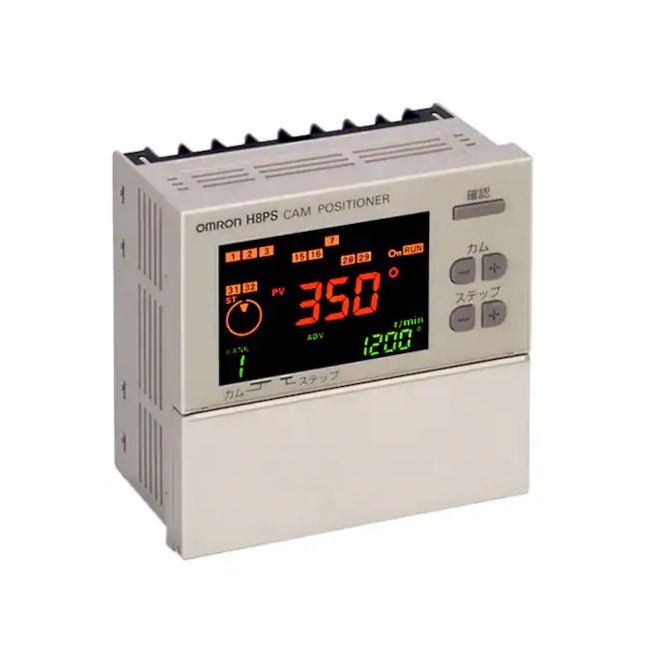

Omron H8PS-8BP Panel Mounting Cam Positioner
SKU#:
5025
Omron H8PS compact cam positioner, popular for its ease-of-use, now comes with even better functions. Compact 8-, 16-, and 32-output models available that are 1/4-DIN size at 96 x 96 mm. High-speed operation at 1,600 r/min and high-precision settings to 0.5° ensure widespread application. Highly visible display with backlit negative transmissive LCD. Advance angle compensation function to compensate for output delays. Bank function for multi-product production (8 banks). (H8PS-16@/-32@ models.) Speed display and pulse output. H8PS-8BP is approved for UL/CSA and EMC.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H8PS-8BP |
| Manufacturer Alternate Number | H8PS8BP |
| UPC | 4536853532475 |
| Display Digits | 3 |
| Supply Voltage Range | 24VDC |
| Cam Positioner | Yes |
| Output Type | 8 Cam, 1 RUN, 1 Pulse output, PNP |
| Mounting Type | Flush |
| Height (mm) | 96mm |
| Width (mm) | 96mm |
| Depth (Length) (mm) | 65mm |
| Weight (lbs) | 0.66 |
| UOM | ea |
