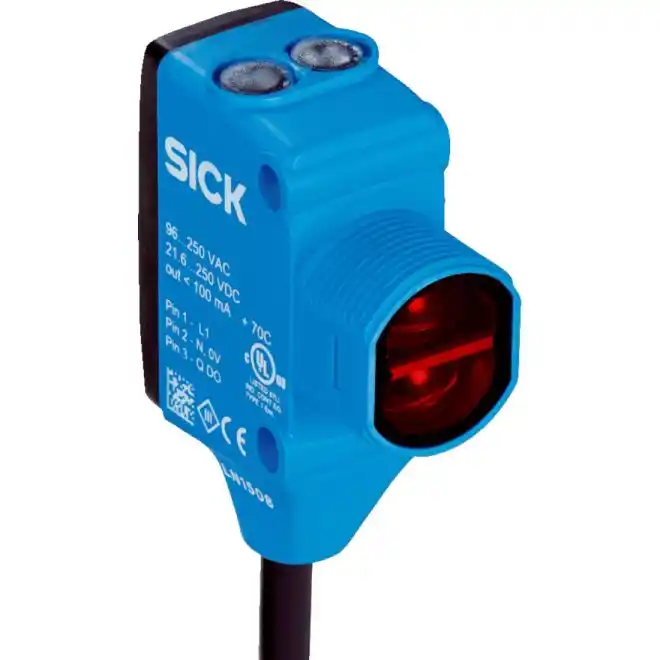

SICK HL18-M1G3AH 1088646 Photoelectric Sensors
SKU#:
584193
Designed to streamline your sensor selection, SICK SureSense HL18-M1G3AH 1088646 through beam sensors are available with an extensive range of optics, connections, configura-tions (light /dark switch and time delays) and power supplies all within the same hybrid housing style. All these options are available with a signal strength light bar, which provides immediate feedback to improve alignment and setup speed.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1088646 |
| Manufacturer Alternate Number | HL18-M1G3AH |
| Size | M18 |
| Body Type | Rectangular |
| Type | Photoelectric Retro-Reflective |
| Operation | Dark Switching |
| Supply Voltage Range | 21.6VDC - 250VDC, 96VAC - 250VAC |
| Material | Plastic, VISTAL |
| Sensing Method | Retro-Reflective |
| Sensing Range | 30mm - 6500mm |
| Output Type | MOSFET |
| Output Function | Dark Switching |
| Light Source | Red LED |
| Electrical Connection | Cable, 3-Wire, 2m |
| Cable Length | 2m |
| IP Rating | IP67, IP69K |
| Height (mm) | 45.5mm (1.79") |
| Width (mm) | 16.2mm |
| Depth (Length) (mm) | 34.4mm |
| Weight (lbs) | 0.20 |
| UOM | EA |
