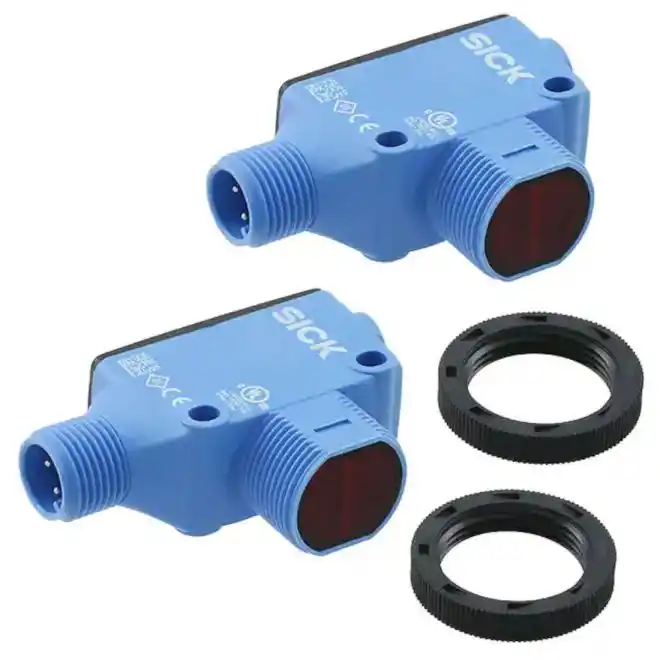

SICK HSE18-P4A2BB 1078931 Through Beam Sensors
SKU#:
567948
Designed to streamline your sensor selection, SICK SureSense HSE18-P4A2BB 1078931 through beam sensors are available with an extensive range of optics, connections, configura-tions (light /dark switch and time delays) and power supplies all within the same hybrid housing style. All these options are available with a signal strength light bar, which provides immediate feedback to improve alignment and setup speed.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1078931 |
| Manufacturer Alternate Number | HSE18-P4A2BB |
| Size | M18 |
| Body Type | Hybrid |
| Type | Hybrid Photoelectric Through-Beam |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Plastic, VISTAL |
| Sensing Method | Through-Beam |
| Sensing Range | 0m - 25m |
| Output Type | PNP |
| Output Function | Complementary |
| Light Source | Red LED |
| Electrical Connection | Male Connector M12, 4-Pin |
| IP Rating | IP67, IP69K |
| Special Function | Signal Strength Light Bar |
| Height (mm) | 48.5mm (1.91") |
| Width (mm) | 16.2mm |
| Depth (Length) (mm) | 31.8mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
