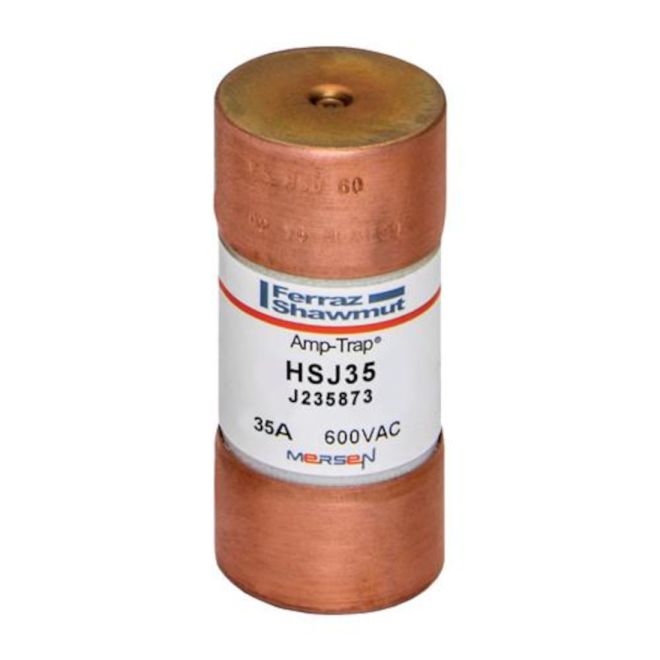

Mersen HSJ35 Ferraz 35A High Speed Power Fuse
SKU#:
377549
Mersen High Speed J (HSJ) fuse combines the low I2t of a semiconductor fuse and the branch circuit performance of a Class J UL listed fuse. HSJ35 fuse was designed for the starting characteristics of solid state motor controllers. The HSJ can provide branch circuit protection per NEC requirements, as well as very low I2t for protection of power semiconductors such as Diodes, SCRs, GTOs and SSRs.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | HSJ35 |
| Manufacturer Alternate Number | J235873 |
| UPC | 782001329501 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 500VDC |
| Rated Current | 35A |
| RoHS Compliant | Yes |
| Fuse Class | J |
| Speed/Characteristic | High Speed |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | High Speed |
| Height (mm) | 27mm (1.06") |
| Width (mm) | 27mm |
| Depth (Length) (mm) | 61mm |
| Weight (lbs) | 0.16 |
| UOM | ea |
