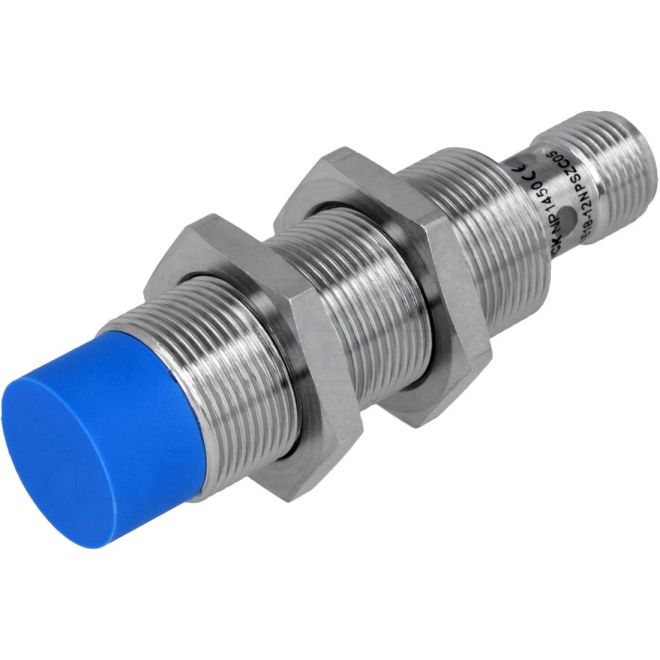

SICK IME18-12NPSZC0S 1040982 M18 Inductive Sensors
SKU#:
391399
SICK's inductive sensors offer precise detection, less downtime and a long service life. The IME18-12NPSZC0S 1040982 inductive sensors pack high technology into the smallest of spaces. The integrated ASIC chip enables digital adjustment after the end of the manufacturing process. The saving of values in the ASIC ensures highly precise switching points and very high repeatability of values - for any number of production runs. IM sensors are completely encapsulated with hotmelt molding, which greatly increases shock and vibration resistance. The customer benefits from high positioning accuracy in the machine and long-term reliability.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1040982 |
| Manufacturer Alternate Number | IME18-12NPSZC0S |
| Size | M18 |
| Body Type | Threaded Cylindrical |
| Type | Standard |
| Supply Voltage Range | 10VDC - 30VDC |
| Sensing Range | 12mm |
| Shielded | No |
| Electrical Connection | Male Connector M12, 4-Pin |
| Output Type | PNP |
| Output Function | Normally Open |
| Operation | Inductive Proximity |
| Threaded Length | 42mm |
| Overall Length | 69mm |
| Mounting Type | Non-Flush |
| IP Rating | IP67 |
| Height (mm) | 18mm (0.71") |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 69mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
