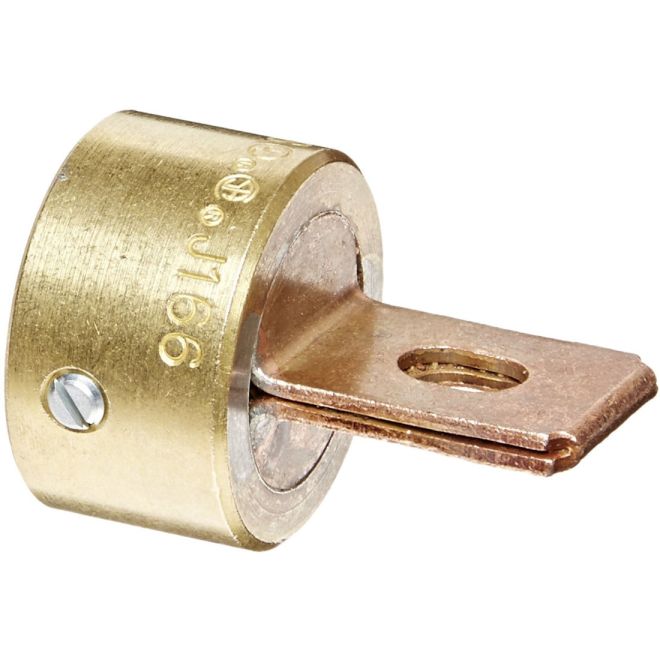

Mersen J166 Ferraz Fuse Reducers 600V 60A to 100A
SKU#:
111052
Mersen J166 fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | J166 |
| Manufacturer Alternate Number | T217528 |
| UPC | 782001753443 |
| Rated Voltage AC | 600VAC |
| Rated Current | 60A - 100A |
| Fuse Class | H, K |
| Height (mm) | 31mm (1.22") |
| Width (mm) | 28mm |
| Depth (Length) (mm) | 102mm |
| Weight (lbs) | 0.30 |
| UOM | ea |
