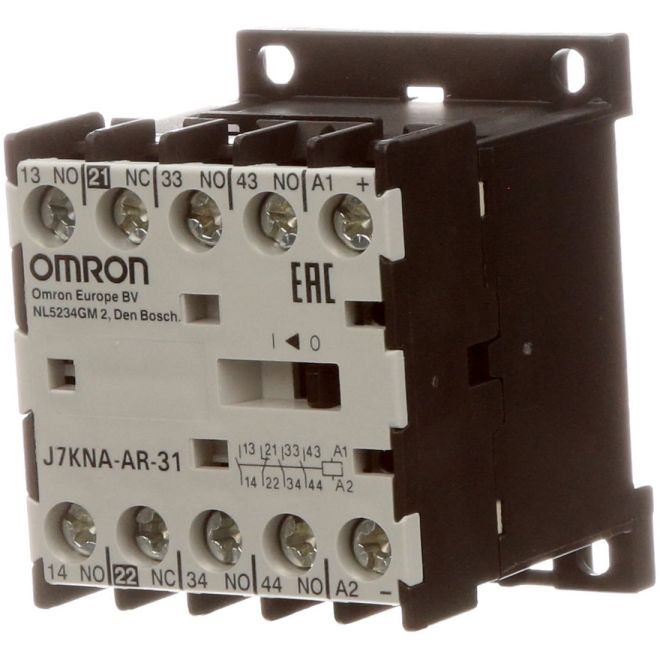

Omron J7KNA-AR-31 24D 4-Pole Mini Contactor Relay
SKU#:
576934
Omron J7KNA-AR-31 24D modular system consists of main contactors and additional contact blocks. The basic units can be combined with auxiliary contacts (top mounting). Reversed versions, including integrated mechanical interlock, are available as well as 3-main-pole and 4-main-pole versions.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | J7KNA-AR-31 24D |
| Manufacturer Alternate Number | J7KNAAR3124D |
| UPC | 4536854851544 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3 Form A (3PST-N/O), 1 Form B (SPST-N/C) |
| Terminal Type | Screw Terminal |
| Mounting Type | DIN Rail |
| Rated Current | 10 A |
| Operating Temperature | -40°C - +60°C |
| Power Consumption | 2.5 W |
| Height (mm) | 57.5mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 49mm |
| Weight (lbs) | 0.42 |
| UOM | ea |
