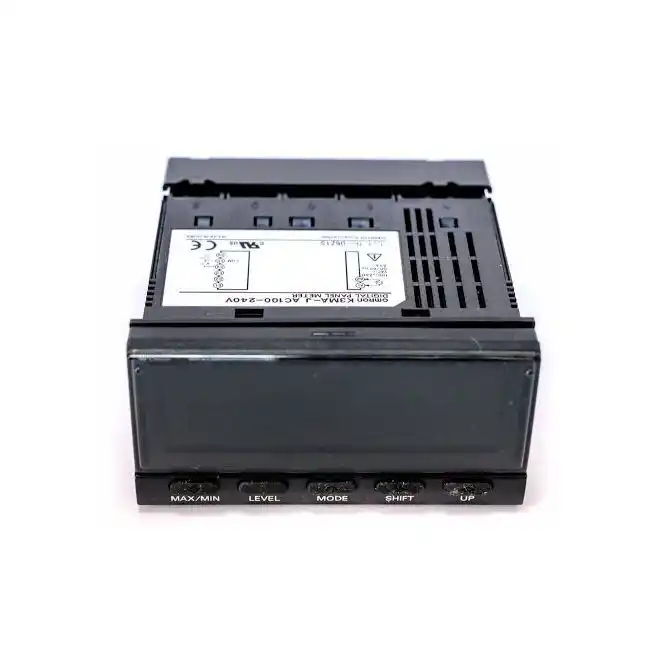

Omron K3MA-J-A2 100-240VAC Process Meter
SKU#:
216346
Omron's K3MA panel meter series is cost effective and spacesaving. For those applications needing display and a single output only, K3MA series is the ideal solution. This product family consists of a process meter, a temperature meter, and a frequency/rate meter. The K3MA-J-A2 100-240VAC is rated NEMA 4X and will fit into most existing 1/8 DIN (92 W x 48 H mm) panel cutouts with a depth measurement of 80 mm. Other quality features of the K3MA are face mounted operating keys, highly visible 7-segment digital LCD display with selectable two-color LEDs, start-up compensation time, display auto-return time, and teaching function.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | K3MA-J-A2 100-240VAC |
| Manufacturer Alternate Number | K3MAJA2100240VAC |
| UPC | 4547648238717 |
| Description | Process Meter |
| Display | Single Line |
| Display Range | -19999 to 99999 |
| Supply Voltage Range | 100VAC - 240VAC |
| Input Type | DC Process Signal |
| Size | 1/8 DIN |
| Output Type | 2 Relays (SPST-NO) |
| Height (mm) | 48mm |
| Width (mm) | 101.2mm |
| Depth (Length) (mm) | 98.3mm |
| Weight (lbs) | 0.44 |
| UOM | ea |
