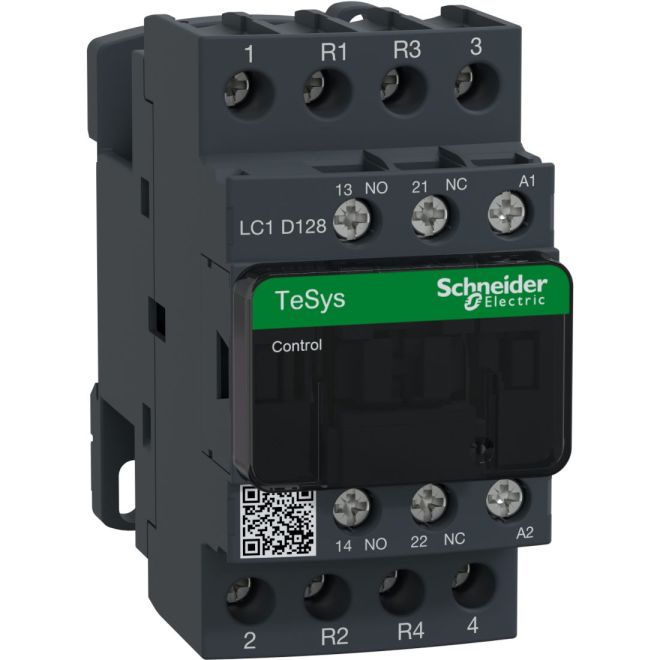

Square D LC1D128G7 IEC Contactors TeSys 25A 120VAC
SKU#:
289899
Schneider Electric LC1D128G7 D-line contactors are the largest selling line of contactors in the world. Square D TeSys Deca low voltage contactors offer high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. Telemecanique TeSys D contactors are available for inductive motor applications up to 150A full-load amps and resistive loads up to 200A. They offer motor control for motors rated up to 100hp at 480VAC or 125hp at 600VAC. Square D LC1 D128G7 is comparable to LC1D12008G6, and Allen-Bradley 700-CF220D.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LC1D128G7 |
| Manufacturer Alternate Number | LC1 D128G7 |
| UPC | 785901407911 |
| Rated Voltage | 480VAC |
| Coil Voltage | 120VAC |
| Contact Arrangement | 2 N/C + 2 N/O |
| Rated Current | 25A |
| Number of Poles | 4 |
| Mounting Type | DIN Rail, Plate |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -40°C - +60°C |
| Duty Cycles | 20,000,000 |
| IP Rating | IP20 |
| Type | Non-Reversing Contactor |
| Height (mm) | 85mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 92mm |
| Weight (lbs) | 0.80 |
| UOM | ea |
