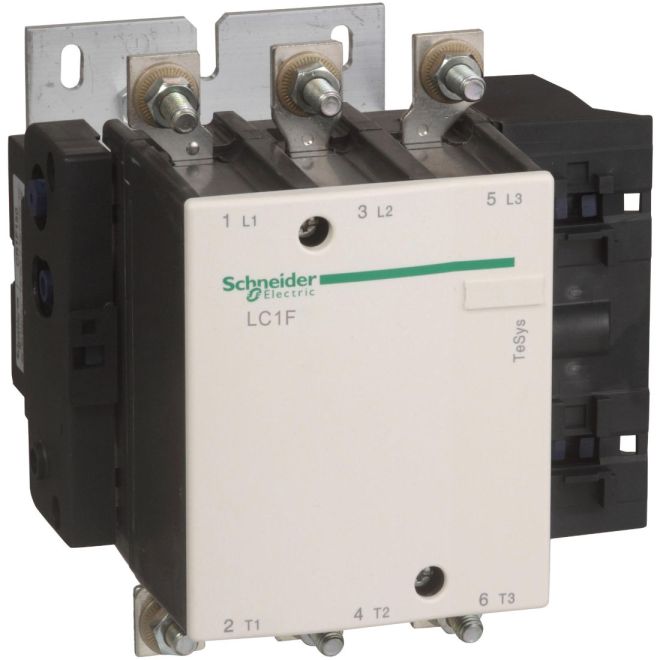

Square D LC1F225F7 Reversing Contactor 225A 3-Pole
SKU#:
289716
Schneider Electric TeSys F contactors to control motors up to 800 A (450 kW / 400 V) have been replaced with the new TeSys Giga contactors. Square D LC1F225F7 TeSys F series of contactors are specifically designed for the most demanding motor and power switching applications. Telemecanique TeSys F is a versatile range of contactors with large installed base, offering multiple benefits to the users. TeSys F is suitable for the control of all types of motors and distribution circuits across industry, infrastructure and building.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LC1F225F7 |
| Manufacturer Alternate Number | LC1 F225F7 |
| UPC | 785901227373 |
| Rated Voltage | 440VAC |
| Coil Voltage | 110VAC |
| Contact Arrangement | 3 N/O |
| Rated Current | 225A |
| Number of Poles | 3 |
| Mounting Type | Plate |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -5°C - +55°C |
| IP Rating | IP20 |
| Type | Reversing Contactor |
| Height (mm) | 197mm |
| Width (mm) | 169mm |
| Depth (Length) (mm) | 181mm |
| Weight (lbs) | 10.47 |
| UOM | ea |
