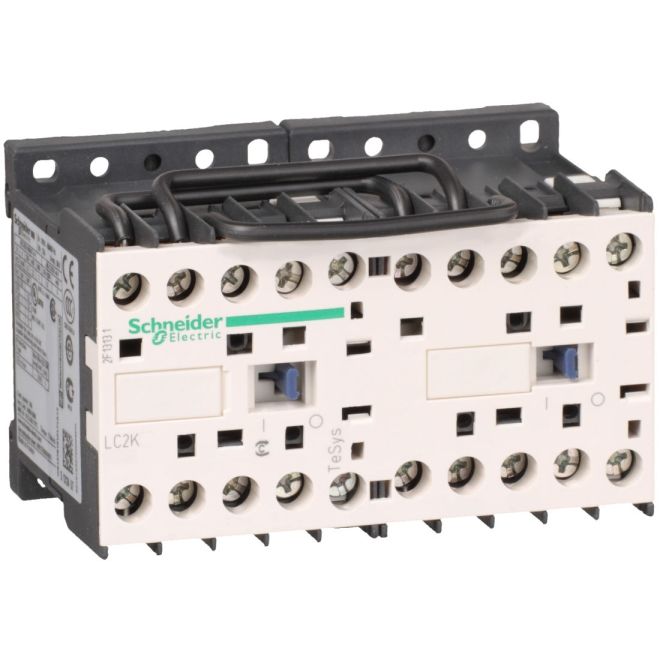

Square D LC2K0610F7 TeSys K Contactors 6A 110VAC
SKU#:
77911
Schneider Electric LC2K0610F7 TeSys K miniature contactors and overload relays are available in 3 contactor ratings for the USA market for inductive motor applications up to 12 full-load amps and resistive loads up to 20 amps. Square D TeSys K contactors and overload relays are ideal for general duty applications where small size and reliability are key concerns. The special armature structure design allows all devices and all operating coils, either AC or DC, to have the same physical size and panel footprint for convenience. Telemecanique devices are available with low consumption DC operating coils for direct connection to PLC circuits.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LC2K0610F7 |
| Manufacturer Alternate Number | LC2K06 10F7 |
| UPC | 785901913849 |
| Rated Voltage | 480VAC |
| Coil Voltage | 110VAC |
| Contact Arrangement | 1 N/O |
| Rated Current | 6A |
| Number of Poles | 3 |
| Mounting Type | DIN Rail, Plate |
| Electrical Connection | Screw Terminals |
| Duty Cycles | 20,000,000 |
| IP Rating | IP20 |
| Type | Mini Contactor |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 90mm |
| Depth (Length) (mm) | 57mm |
| Weight (lbs) | 0.86 |
| UOM | ea |
