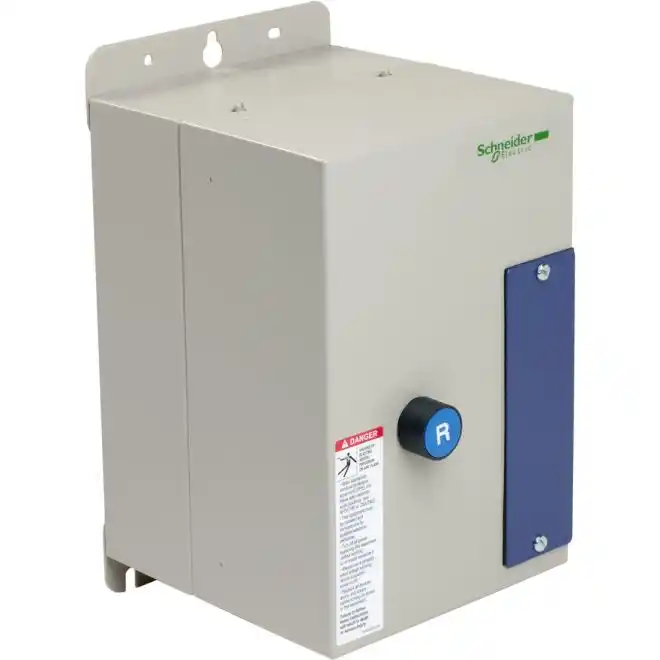

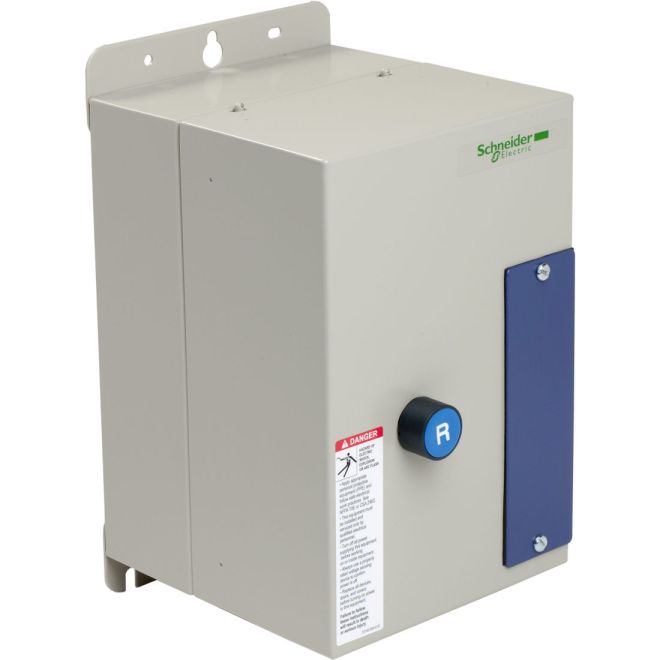

Square D LE1D093A72OG70 Full voltage starter TeSys
SKU#:
289575
Schneider Electric LE1D093A72OG70 IEC combination starters combine the requirements of motor overload and short circuit protection in one convenient compact package. All Square D fusible devices provide Type 2 Coordination through 30 hp at 460 V. Telemecanique IEC combination starter line accepts standard TeSys D accessories and all Insta-Kits pilot devices and control power transformer kits for convenience. Standard capacity control power transformers with built-in fuse block can be installed in the standard enclosure.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LE1D093A72OG70 |
| UPC | 785901466048 |
| Rated Voltage | 120VAC |
| Rated Current | 9A |
| Electrical Connection | 1 NO + 1 NC |
| Type | Full voltage starter |
| HP | 0.3 hp 120 V AC, 1 hp 240 V AC, 1 phase 2 hp 208 V AC, 2 hp 230 V AC, 5 hp 460 V AC, 7.5 hp 575 V AC, 3 phase |
| Height (mm) | 239mm |
| Width (mm) | 272mm |
| Depth (Length) (mm) | 368mm |
| Weight (lbs) | 10.45 |
| UOM | ea |
