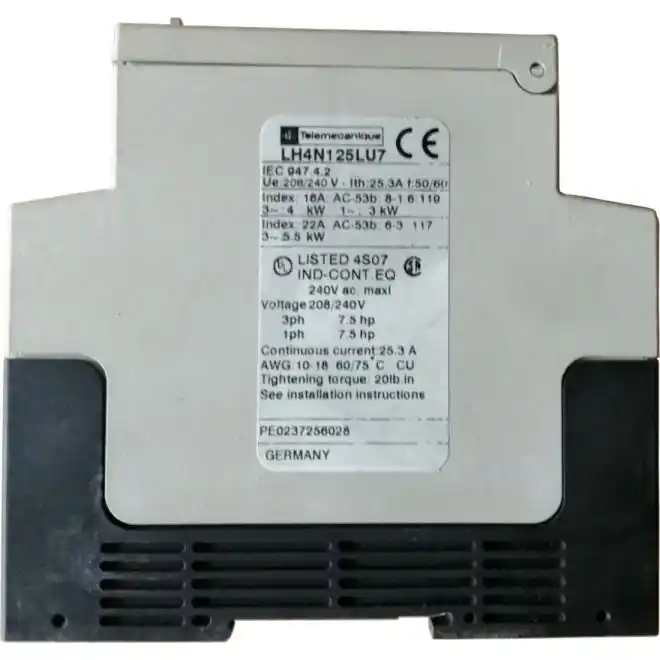

Square D LH4N125LU7 soft starters for motor 25A
SKU#:
78356
Schneider Electric LH4N125LU7 Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 25A. This Altistart 01 can be used for a motor rated power up to 11kW or 15hp for 3-phase (110V to 480V AC) and up to 2.2kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LH4N125LU7 |
| UPC | 785901567431 |
| Rated Voltage | 220VAC, 240VAC |
| Rated Current | 25A |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Operating Temperature | -10°C - +40°C |
| Type | Circuit Breaker |
| Mounting Type | DIN Rail |
| Height (mm) | 124mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 131mm |
| Weight (lbs) | 0.77 |
| UOM | ea |
