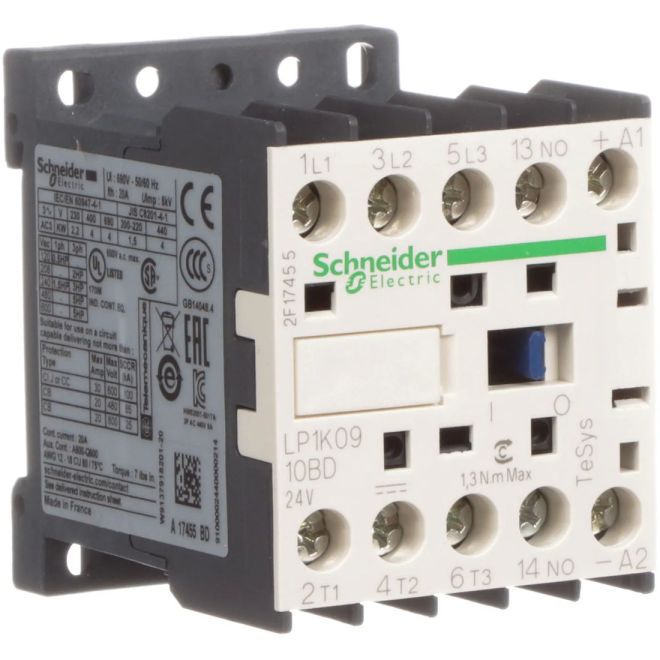

Square D LP1K0910BD TeSys K Contactors 9A 24VDC
SKU#:
78579
Schneider Electric LP1K0910BD TeSys K miniature contactors and overload relays are available in 3 contactor ratings for the USA market for inductive motor applications up to 12 full-load amps and resistive loads up to 20 amps. Square D TeSys K contactors and overload relays are ideal for general duty applications where small size and reliability are key concerns. The special armature structure design allows all devices and all operating coils, either AC or DC, to have the same physical size and panel footprint for convenience. Telemecanique devices are available with low consumption DC operating coils for direct connection to PLC circuits. Square D LP1K0910BD is comparable to Schneider Electric LC1K0910.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LP1K0910BD |
| Manufacturer Alternate Number | LP1K09 10BD |
| UPC | 785901832485 |
| Rated Voltage | 440VAC |
| Coil Voltage | 24VDC |
| Contact Arrangement | 1 N/O |
| Rated Current | 9A |
| Number of Poles | 3 |
| Mounting Type | DIN Rail, Plate |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +50°C |
| Duty Cycles | 20,000,000 |
| Type | Mini Contactor |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 57mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
