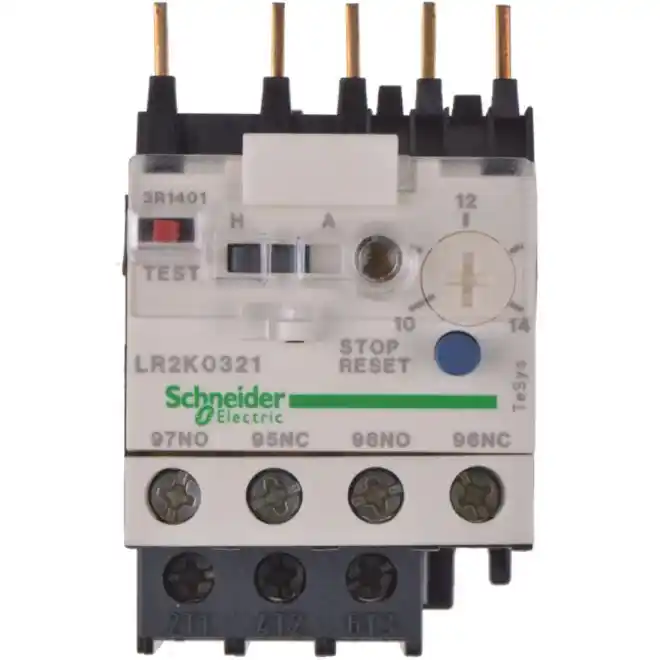

Square D LR2K0321 Overload Relays 10A to 14A
SKU#:
170924
Schneider Electric LR2K0321 thermal overload relays can be mounted on all 3-pole LC1K contactors with screw clamp connectors. Telemecanique overload relays are designed for the protection of motors. They are compensated and phase failure sensitive. Resetting can either be manual or automatic. With its integrated manual-automatic reset and simple installation, Square D model Micra bimetallic overload relays are very reliable and cover the whole range of motor ratings up to 14 A. They can be combined with TeSys Micra contactors to form an extremely compact starter. Schneider Electric LR2 K0321 is comparable to Telemecanique LC1K1210.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LR2K0321 |
| Manufacturer Alternate Number | LR2 K0321 |
| UPC | 785901705888 |
| Rated Voltage | 690VAC |
| Contact Arrangement | 1 N/C + 1 N/O |
| Rated Current | 10A - 14A |
| Mounting Type | Plate, DIN Rail, Under Contactor |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -20°C - +60°C |
| IP Rating | IP20 |
| Type | Thermal |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 65mm |
| Weight (lbs) | 0.32 |
| UOM | ea |
