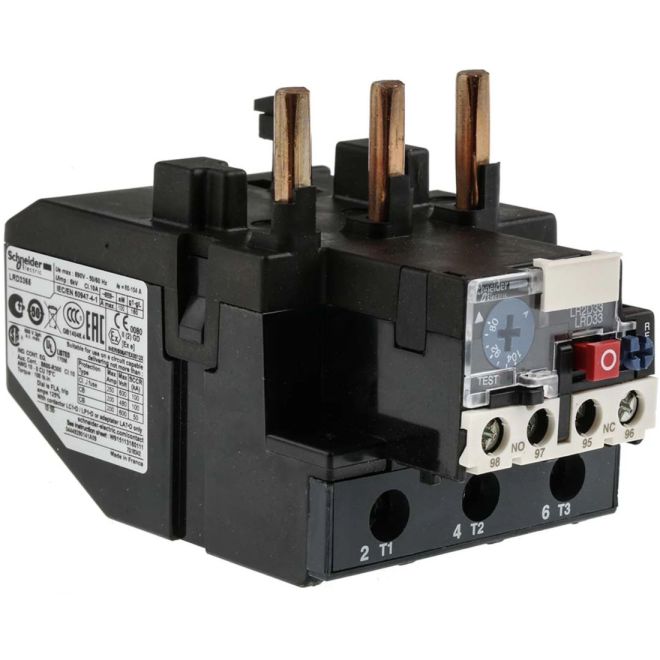

Square D LRD3365 Thermal Overload Relay 80A - 104A
SKU#:
290145
Schneider Electric LRD3365 TeSys Deca overload relays (formerly TeSys LRD). Telemecanique TeSys Deca bimetallic and electronic overload relays directly mount to TeSys D contactors to form extremely compact starters. Square D TeSys Deca features an integrated manual-automatic reset button and simple installation using screw clamp terminals, spring terminals, ring terminals, or EverLink terminals. TeSys Deca thermal overload relays are very reliable and cover a wide range of motor ratings up to 150 A. LRD thermal overload relays can only be mounted on LC1D contactors of same size ratio and with screw clamp connectors.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LRD3365 |
| Manufacturer Alternate Number | LRD 3365 |
| UPC | 785901234449 |
| Rated Voltage | 1000VAC |
| Contact Arrangement | 1 N/C + 1 N/O |
| Rated Current | 80A - 104A |
| Mounting Type | Plate, DIN Rail, Under Contactor |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -20°C - +60°C |
| IP Rating | IP20 |
| Type | Thermal |
| Height (mm) | 81mm |
| Width (mm) | 70mm |
| Depth (Length) (mm) | 115mm |
| Weight (lbs) | 1.12 |
| UOM | ea |
