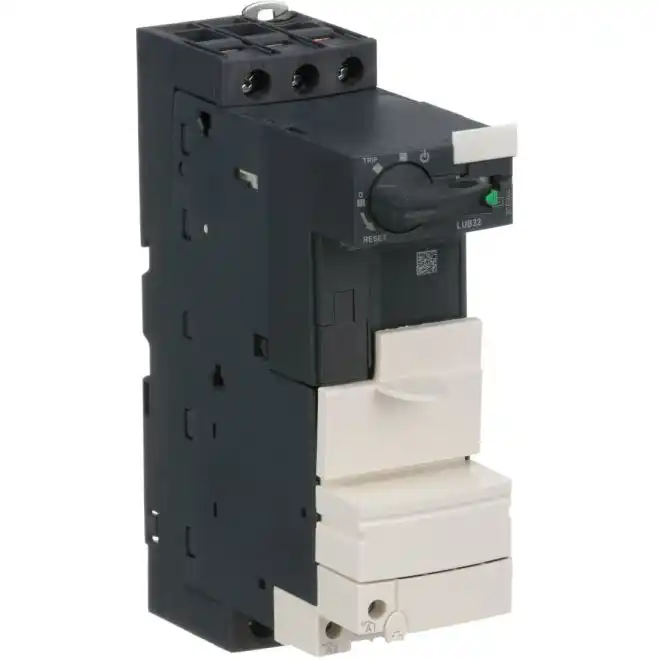

Square D LUB32 Power base TeSys 32A screw clamps
SKU#:
290341
Schneider Electric LUB32 TeSys U standard power base, 3 poles (3NO), 32A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 15kW@400V. Telemecanique base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. Square D power base is equipped with a control terminal block, and blanking shutters covering the empty cavities.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | LUB32 |
| UPC | 3389110362787 |
| Rated Voltage | 690 V AC |
| Rated Current | 32A |
| Electrical Connection | 1 NO + 1 NC |
| Type | Non reversing power base |
| Height (mm) | 154mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 126mm |
| Weight (lbs) | 1.98 |
| UOM | ea |
