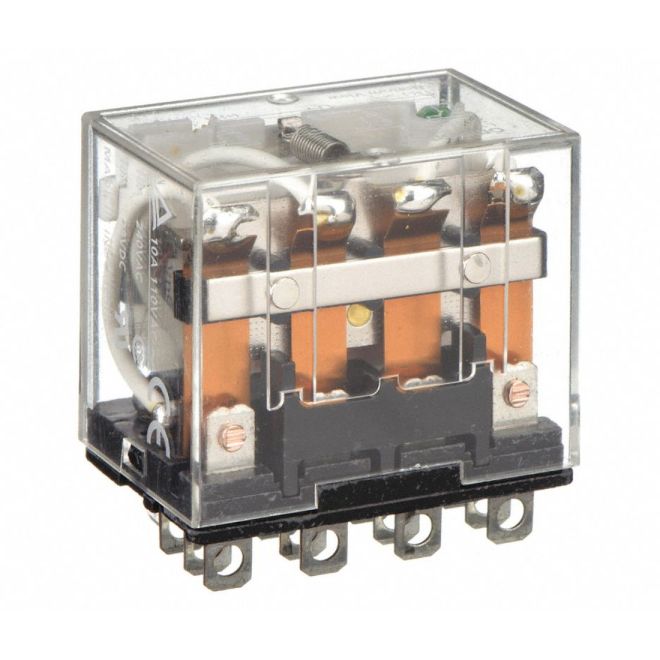

Omron LY4N-DC24 4PDT 4-Pole 10A Bi-Power Relay
SKU#:
2397
Omron LY series is equipped with arc barrier and built-in diode. LY comes in single-pole, double-pole, three-pole and four-pole models. The available mounting types are DIN-rail by socket, PCB & flange mounting. LY4N-DC24 is equipped with an arc barrier for arc interruption. Omron LY4N-DC24 is comparable to IDEC RH4B-UL-DC24, RH4B-U-DC24, Finder 56.34.9.024.0000.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | LY4N DC24 |
| Manufacturer Alternate Number | LY4NDC24 |
| UPC | 4536853621797 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 4 Form C (4PDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 110 VAC, 5A at 24 VDC |
| Rated Load (Resistive) | 10 A at 110 VAC, 10 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,100 VA, 240 W |
| Max. Switching Power (Inductive) | 825 VA, 120 W |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +40°C |
| Power Consumption | Approx. 1.50 W |
| RoHS Compliant | Yes |
| Duty Cycles | 200,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 41.5mm |
| Depth (Length) (mm) | 28mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
