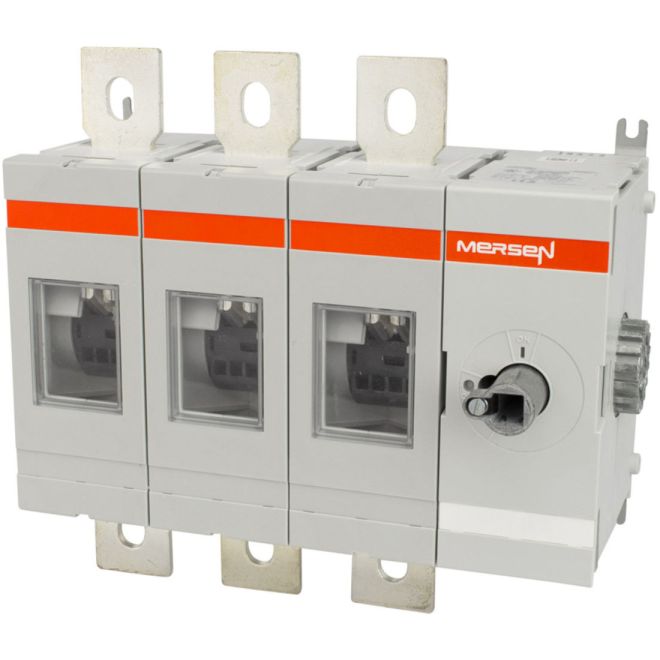

Mersen M200U30 Ferraz UL 98 Non-Fusible Disconnect
SKU#:
443230
Mersen's non-fusible disconnect switches are listed to UL 98 and bear the CE mark as conformance to IEC 60947-3. They are "service entrance" devices that are capable of fully rated load-break and load-make. All switches over 100A have windows to provide visual indication of the contact status. Engineered to have the smallest footprint, M200U30 switches also employ a modular design that enables the handle to be placed amongst the poles or at the ends. A wide range of ergonomic handles and accessories is available to accommodate multiple applications.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | M200U30 |
| Manufacturer Alternate Number | Q1043179 |
| UPC | 3605340557367 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 200A |
| RoHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 200kA |
| Short Circuit Rating (Standalone) | 200kA |
| Short Circuit Rating (Class J) | 200kA |
| Number of Poles | 3 |
| Mounting Type | Direct Screw Mount |
| Connection/Terminal Material | Silver-Plated Copper |
| Terminal Type | Blade |
| Type | Non-Fusible Disconnect Switch |
| Height (mm) | 70mm (2.76") |
| Width (mm) | 170mm |
| Depth (Length) (mm) | 170mm |
| Weight (lbs) | 3.47 |
| UOM | ea |
