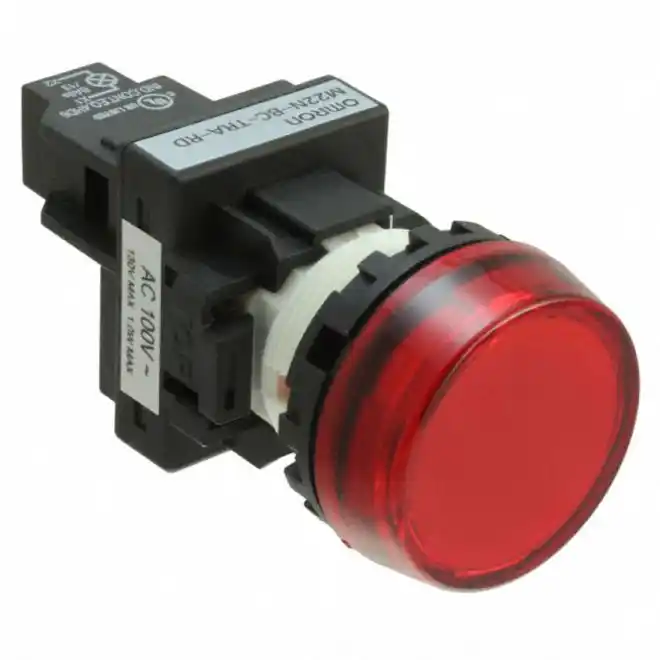

Omron M22N-BC-TRA-RD Flat Etched Red LED Indicator
SKU#:
570346
Panel builders and machine designers like the aesthetic appeal of switches with the metal bezels. Omron's A22N series delivers that appearance with simple installation and NEMA 4X (IP66) rating, in a selection of popular colors and switching functions. The A22N series includes 22 mm diameter pushbuttons, selector switches and M22N-BC-TRA-RD pilot lights to match most control panel needs.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | M22N-BC-TRA-RD |
| Manufacturer Alternate Number | M22NBCTRARD |
| UPC | 4548583711150 |
| IP Rating | IP66 |
| Hole Diameter | 22.3mm, 25.5mm |
| Mounting Type | Panel |
| Color | Red |
| Shape | Plastic Flat Etched |
| Terminal Type | Screw Terminal |
| Head Diameter | 29.9mm |
| Profile | Flat |
| Light Source | LED |
| Supply Voltage Range | 110VAC |
| Height (mm) | 30mm (1.18") |
| Width (mm) | 30mm |
| Depth (Length) (mm) | 59.2mm |
| Weight (lbs) | 0.07 |
| UOM | ea |
