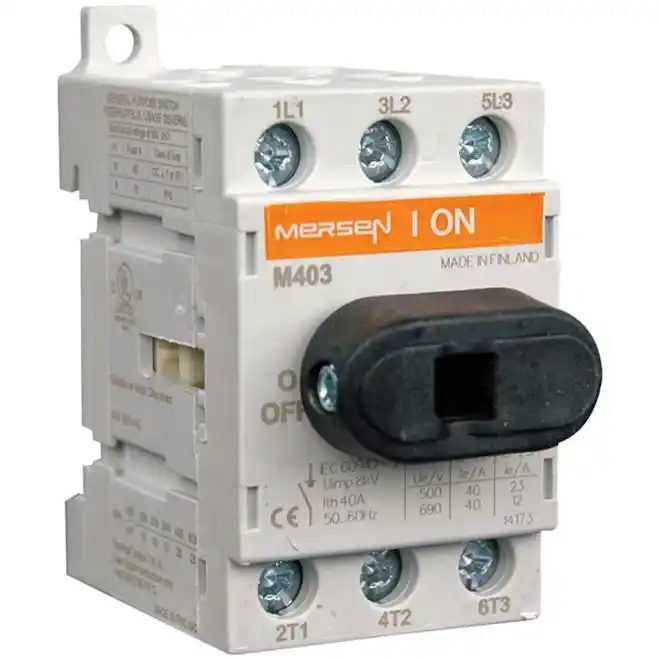

Mersen M403 Ferraz UL 508 Non-Fusible Disconnect
SKU#:
443613
Mersen M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, M403 switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | M403 |
| Manufacturer Alternate Number | C1043190 |
| UPC | 3605340557435 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 0VDC |
| Rated Current | 40A |
| RoHS Compliant | Yes |
| Short Circuit Current Rating (SCCR) | 100kA |
| Short Circuit Rating (Class J) | 10kA |
| Short Circuit Rating (Class RK5) | 5kA |
| Number of Poles | 3 |
| Wire Size | #18-8 |
| Mounting Type | Direct Screw Mount |
| Terminal Type | Box |
| Type | Non-Fusible Disconnect Switch |
| Height (mm) | 45mm |
| Width (mm) | 35mm |
| Depth (Length) (mm) | 54mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
