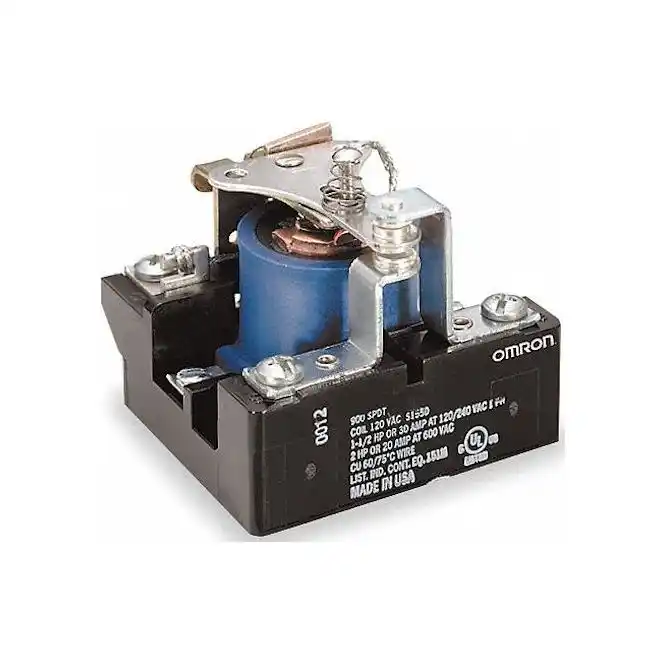

Omron MGN1C-AC120 Short Base SPDT Power Relay
SKU#:
265268
Omron MGN series is a 30A heavy duty relay. Class F coil insulation system for 155°C (311°F). Coil molded in DuPont Rynite® for environmental protection. Rugged construction rivets terminals to base. MGN1C-AC120 is CULUS Listed. Short Circuit Current Rating (SCCR) of 5kA, 600VAC. Omron MGN1C-AC120 is comparable to Schneider Magnecraft W199AX-4, TE Connectivity Tyco Potter & Brumfield Schrack PRD5AG0-120, PRD5AY0-120, 9-1393127-9, 1393128-5, Deltrol 20239-83.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MGN1C AC120 |
| Manufacturer Alternate Number | MGN1CAC120 |
| UPC | 689205882927 |
| Coil Voltage | 120VAC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Max. Switching Voltage | 600 VAC 60Hz |
| Max. Switching Current | 30 A |
| Rated Current | 30A at 120 VAC, 30A at 28 VDC |
| Operating Temperature | -45°C - +80°C |
| Power Consumption | 9.5 VA |
| Duty Cycles | 100,000 |
| Height (mm) | 56mm (2.19") |
| Width (mm) | 63.5mm |
| Depth (Length) (mm) | 63.5mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
