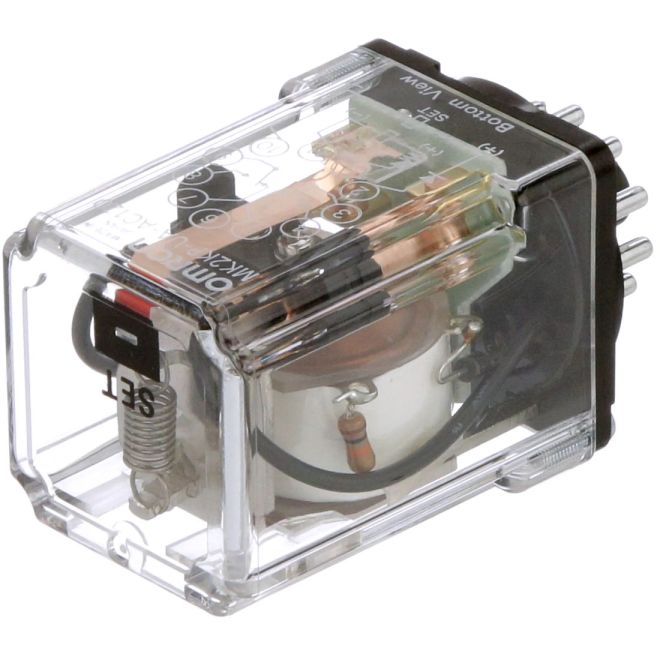

Omron MK2KP-UA-AC120 2-Poles 120VAC Latching Relay
SKU#:
160823
Omron MKK latching relays are designed for memory and signaling circuits. Low changes in characteristics such as contact tracking and contact pressure for high durable. Excellent resistance to vibration and shock. MK2KP-UA-AC120 has built-in operation indicators for simple operation verification. Same external shape with the MK Power Relays.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MK2KP-UA AC120 |
| Manufacturer Alternate Number | MK2KPUAAC120 |
| UPC | 4536853628031 |
| Coil Voltage | 120VAC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Max. Switching Voltage | 250 VAC, 250 VDC |
| Max. Switching Current | 5 A |
| Rated Current | 2 A at 220 VAC, 2.5 A at 24 VDC |
| Rated Load (Resistive) | 5 A at 220 VAC, 3 A at 24 VDC |
| Max. Switching Power(Resistive) | 1,100 VA, 72 W |
| Max. Switching Power (Inductive) | 440 VA, 60 W |
| Operating Temperature | -10°C - +40°C |
| Power Consumption | Approx. 1.5 VA to 2 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 500,000 |
| Height (mm) | 52.5mm (2.07") |
| Width (mm) | 34.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.19 |
| UOM | ea |
