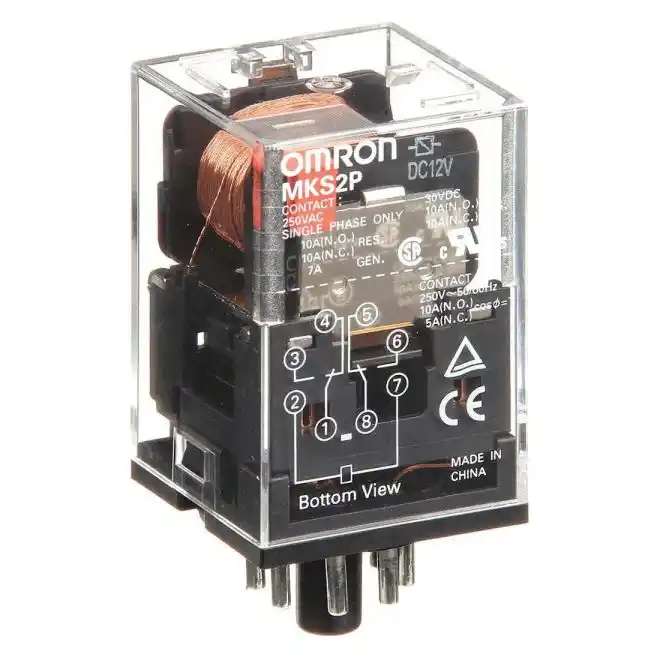

Omron MKS2P DC12 DPDT Plug-in 12VDC Relay
SKU#:
432340
Omron MK-S has models with latching lever added to the series. Same mounting and internal wiring as the previous Super MK Relays. Built-in mechanical indicator on MKS2P DC12 enables checking contact operation. Two modes can be used to check circuits for models with latching lever. Nameplate provided on models with latching lever. All materials are RoHS compliant. UL and IEC (TUV) certification.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MKS2P DC12 |
| Manufacturer Alternate Number | MKS2PDC12 |
| UPC | 4.55E+12 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Max. Switching Voltage | 250 VAC, 250 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 250 VAC |
| Rated Load (Resistive) | NO 10 A at 250 VAC, 10A at 30 VDC / NC 5 A at 250 VAC, 5 A at 30 VDC |
| Max. Switching Power(Resistive) | NO 2,500 VA 300 W / NC 1,250 VA 150 W |
| Max. Switching Power (Inductive) | NO 2,500 VA 300 W / NC 1,250 VA 150 W |
| Minimum Load | 10 mA at 1 VDC |
| Operating Temperature | -40°C - +60°C |
| Power Consumption | Approx. 1.4 W |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 52.5mm (2.07") |
| Width (mm) | 34.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.2 |
| UOM | ea |
