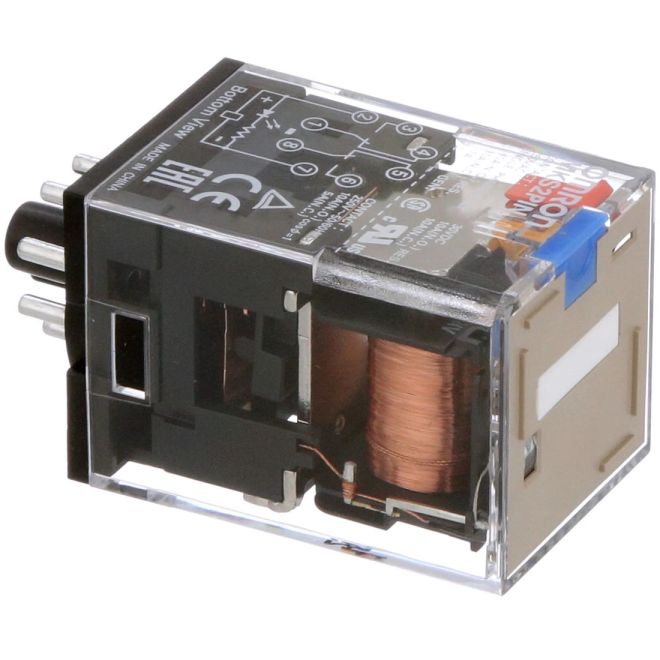

Omron MKS2PIN DC24 DPDT Plug-in 24VDC Relay
SKU#:
413790
Omron MK-S has models with latching lever added to the series. Same mounting and internal wiring as the previous Super MK Relays. Built-in mechanical indicator on MKS2PIN DC24 enables checking contact operation. Two modes can be used to check circuits for models with latching lever. Nameplate provided on models with latching lever. All materials are RoHS compliant. UL and IEC (TUV) certification. Omron MKS2PIN DC24 is comparable to Schneider Magnecraft 750XBXM4L-24D, Finder 60.12.9.024.0074, TURCK Releco C2-A20X/024VDC, IDEC RR2P-ULC-DC24, Relpol Altech R15-2012-23-1024-WTL, TE Connectivity Tyco Schrack Potter & Brumfield KRPA-11DNFP-24, MT223024, Allen Bradley 700-HA32Z24-1-4.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MKS2PIN DC24 |
| Manufacturer Alternate Number | MKS2PINDC24 |
| UPC | 4547648440943 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 2 Form C (DPDT) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED, Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 250 VAC, 250 VDC |
| Max. Switching Current | 10 A |
| Rated Current | 7.5A at 250 VAC |
| Rated Load (Resistive) | NO 10 A at 250 VAC, 10A at 30 VDC / NC 5 A at 250 VAC, 5 A at 30 VDC |
| Max. Switching Power(Resistive) | NO 2,500 VA 300 W / NC 1,250 VA 150 W |
| Max. Switching Power (Inductive) | NO 2,500 VA 300 W / NC 1,250 VA 150 W |
| Minimum Load | 10 mA at 1 VDC |
| Operating Temperature | -40°C - +60°C |
| Power Consumption | Approx. 1.4 W |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 52.5mm (2.07") |
| Width (mm) | 34.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
