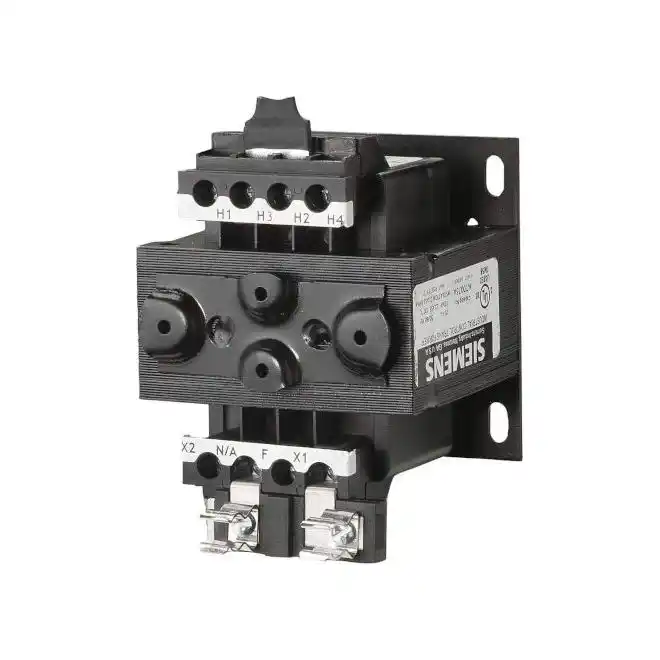

SIEMENS MT0075C 75VA 120x240, 24 VAC Transformers
SKU#:
237504
SIEMENS MT0075C industrial control power transformers are specifically designed and built to provide adequate voltage to the load while accommodating the high current levels present at inrush. These transformers deliver excellent secondary voltage regulation and meet or exceed the standards established by NEMA, ANSI, UL and CSA. Their rugged construction and excellent electrical characteristics ensure reliable operation of electromagnetic devices and trouble-free performance. Epoxy-encapsulated (50-750VA); epoxy resin impregnated (1.0-5.0 KVA) completely seals the transformer coils against moisture, dust, dirt and industrial contaminants for maximum protection in hostile and industrial environments.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | MT0075C |
| UPC | 754554026725 |
| Input Voltage | 120VAC, 240VAC |
| Output Voltage | 24VAC |
| Rated Power | 75VA |
| Frequency | 50/60Hz |
| Electrical Connection | Screw Terminals |
| Standards | UL, CSA |
| Height (mm) | 88mm (3.46") |
| Width (mm) | 76mm |
| Depth (Length) (mm) | 104mm |
| Weight (lbs) | 3.50 |
| UOM | ea |
