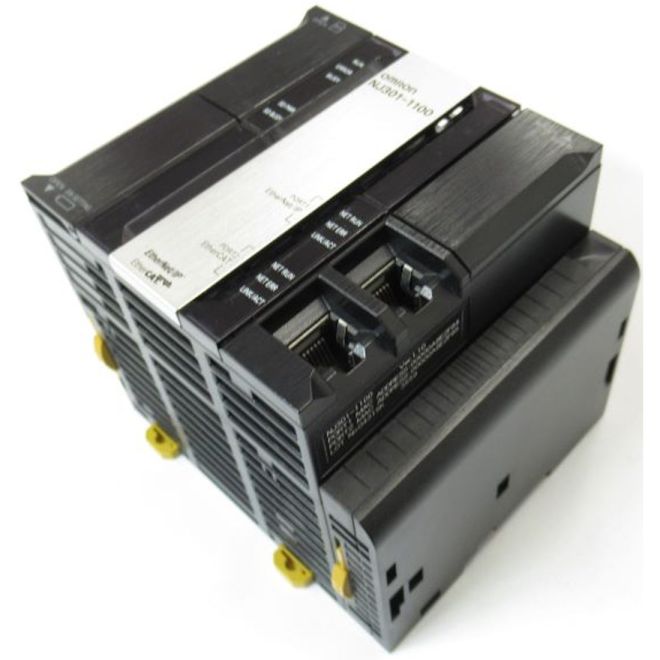

Omron NJ301-1100 Machine Automation Controller CPU
SKU#:
419141
At the core of Sysmac platform, Omron machine controller series offers synchronous control of all machine devices and advanced functionality such as motion, robotics and database connectivity. This multi disciplinary concept allows you to simplify solution architecture, reduce programming and optimize productivity. Omron is the first in the industry to provide a controller NJ301-1100 that integrates two very different types of engines, one that works in program scan cycles (PLC feature) and another based on procedural programming (robot feature) and synchronizes their program tasks and I/O refreshing.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | NJ301-1100 |
| Manufacturer Alternate Number | NJ3011100 |
| UPC | 4548583113121 |
| Memory Card Type | SD |
| Total I/O Capacity | 2,560 Points Local (66,560 with NX I/O) |
| Maximum Number of Units | 10 per CPU or Expansion Rack; 40 Total per CPU |
| Min. Cycle Time | 0.5ms |
| Motion Control Network | EtherCAT |
| Mounting Type | DIN Rail |
| Program Capacity | 5MB |
| Programming Connection | USB / Ethernet |
| Programming Language | Ladder / Structured Text / Function Block |
| Total Axes/Point to Point Axes/Coordinated Axes | 4/0/4 |
| Height (mm) | 90mm |
| Width (mm) | 90mm |
| Depth (Length) (mm) | 90mm |
| Weight (lbs) | 1.21 |
| UOM | ea |
