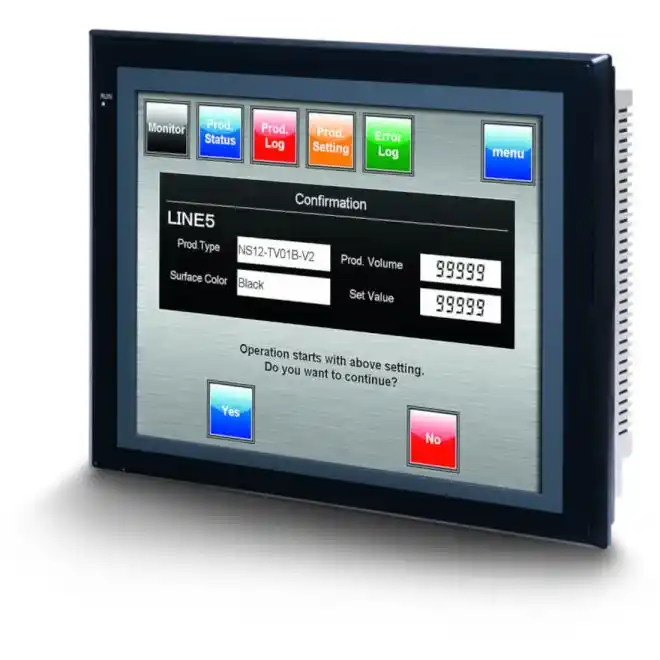

Omron NS12-TS01B-V2 12.1" Programmable Terminal
SKU#:
264507
Omron NS Series transforms machine HMIs from simple operation panels and turns them into machine management tools. NS12-TS01B-V2 NS-series HMIs have a proven track record that will take your machines to a higher level of reliability. The NS-series HMIs provide the highest possible compatibility with the road-proven CS/CJ-series the highest new NJ-series Controllers to achieve even greater added value in user machines.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | NS12-TS01B-V2 |
| Manufacturer Alternate Number | NS12TS01BV2 |
| UPC | 4547648212007 |
| Color | Black |
| Display | Color Graphics |
| Enclosure Type | NEMA 1, NEMA 12, NEMA 13, NEMA 4X Indoor Use Only |
| Interaction | Touch Screen |
| Standards | UL, CSA, CE, ABS, NK, LR, DNV, RINA, BV, GL, KR, CR, GOST-R, EAC |
| Type | Dedicated Standard HMI |
| Memory Card Type | Compact Flash |
| Resolution | 800 x 600 |
| Display Size and Type | 12.1-inch TFT Color LCD |
| Memory Size | 60MB |
| Web Interface | Yes |
| Communications | Ethernet, USB, RS-232C, PictBridge |
| Mounting Type | Landscape |
| Height (mm) | 241mm |
| Width (mm) | 323mm |
| Depth (Length) (mm) | 42mm |
| Weight (lbs) | 5.51 |
| UOM | ea |
