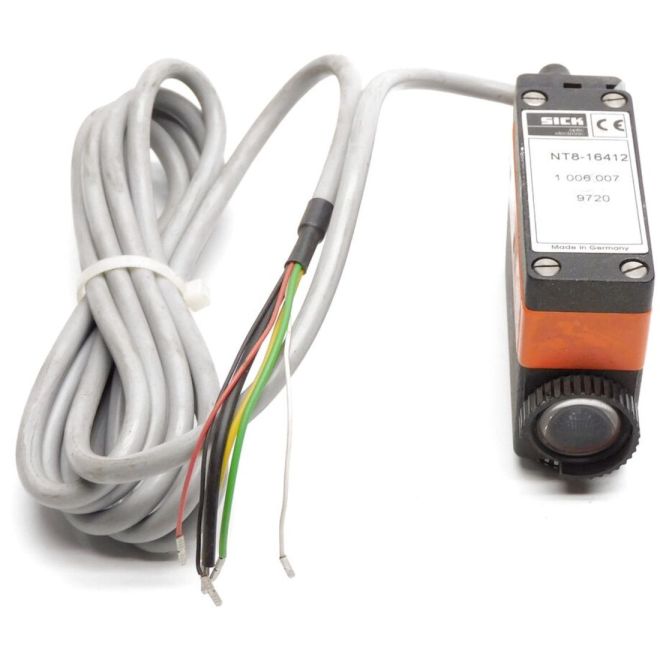

SICK NT8-16412 1006007 Contrast Sensor Rectangular
SKU#:
34855
SICK NT8-16412 1006007 contrast scanner is an optoelectronic sensor and is used for optical, non-contact detection of contrast marks. SICK contrast scanners do not require any maintenance. We recommend that you clean the optical interfaces and check the screw connections and plug-in connections at regular intervals. SICK NT8-16412 is comparable to SICK Replacement Type: KTX-WN91142252ZZZZ Part number: 1078067 and Type: KTX-WN91141252ZZZZ Part number: 1078098.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 1006007 |
| Manufacturer Alternate Number | NT8-16412 |
| Body Type | Rectangular |
| Type | Photoelectric Contrast |
| Operation | Light/Dark Switching |
| Supply Voltage Range | 10VDC - 30VDC |
| Material | Metal, Zinc Diecast |
| Sensing Method | Contrast |
| Sensing Direction | Vertical Light Spot |
| Sensing Range | 9mm |
| Output Type | NPN |
| Light Source | White LED |
| Electrical Connection | Cable, 5-Wire, 2m |
| Cable Length | 2m |
| IP Rating | IP67 |
| Height (mm) | 30mm (1.18") |
| Width (mm) | 76mm |
| Depth (Length) (mm) | 58.8mm |
| Weight (lbs) | 1.20 |
| UOM | ea |
