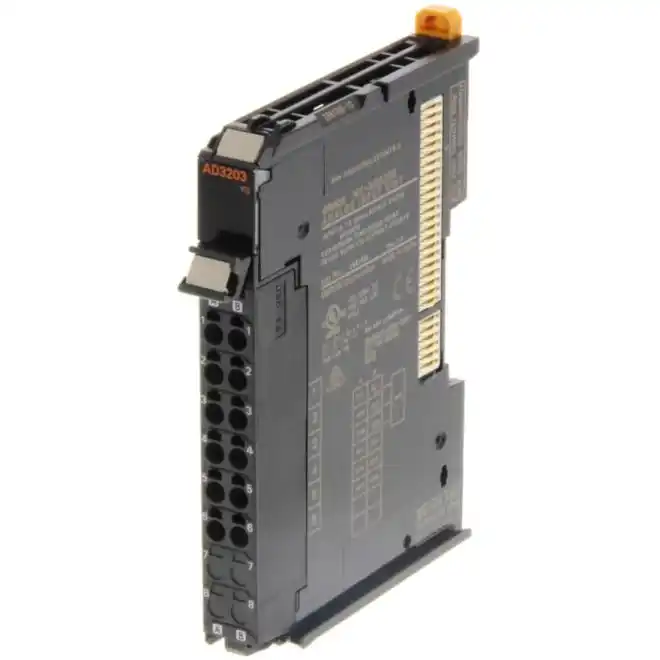

Omron NX-AD3203 4-Points Analog Current Inputs
SKU#:
429400
Omron NX I/O system offers a wide variety of I/O devices. Its ultra-fast internal bus system is synchronized with the Distributed Clock of the EtherCAT network. The resulting system-wide deterministic I/O operation allows machine builders to improve machine production rates and output quality. An EtherNet/IP bus coupler is available for non-synchronous use , e.g. with CJ-series PLC's. Wide variety of slim design, high density remote I/O modules like NX-AD3203 for use with Ethernet/IP or EtherCAT master controller units.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | NX-AD3203 |
| Manufacturer Alternate Number | NXAD3203 |
| UPC | 4548583353350 |
| Mounting Type | DIN Rail |
| Power Supply Required | Yes |
| Type | Analog Input, Analog Output |
| Terminal Type | Screwless Clamping Terminal Block, Removable |
| Input Signal Type | Analog Current |
| Number of Points | 4 |
| Resolution | 1/8000, 250µs/channel |
| Accuracy at 25C | &plusminus;0.2% |
| Height (mm) | 100mm |
| Width (mm) | 12mm |
| Depth (Length) (mm) | 71mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
