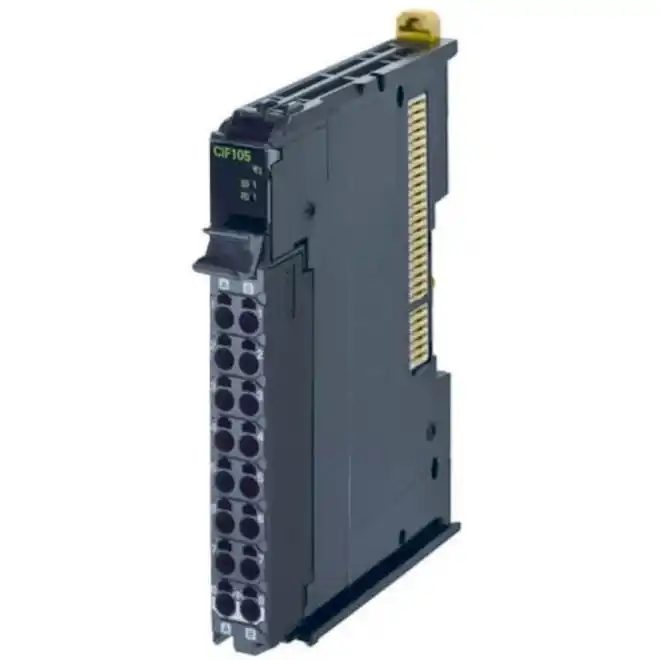

Omron NX-CIF105 1 x RS-422/485C Serial Module

SKU#:

577267

Omron NX I/O system offers a wide variety of I/O devices. Its ultra-fast internal bus system is synchronized with the Distributed Clock of the EtherCAT network. The resulting system-wide deterministic I/O operation allows machine builders to improve machine production rates and output quality. An EtherNet/IP bus coupler is available for non-synchronous use , e.g. with CJ-series PLC's. Wide variety of slim design, high density remote I/O modules like NX-CIF105 for use with Ethernet/IP or EtherCAT master controller units.
Specifications
Brand Omron Automation
Manufacturer Part Number NX-CIF105
Manufacturer Alternate Number NXCIF105
UPC 4548583588660
Mounting Type DIN Rail
Power Supply Required Yes
Type Serial-Communications
Terminal Type Screwless Clamping Terminal Block, Removable
Communications Serial
Special Function Serial Interface In-line Module
Number of Ports 1
Port Types RS-422A/RS-485
Height (mm) 104.5mm
Width (mm) 80mm
Depth (Length) (mm) 14.1mm
Weight (lbs) 0.15
UOM ea
