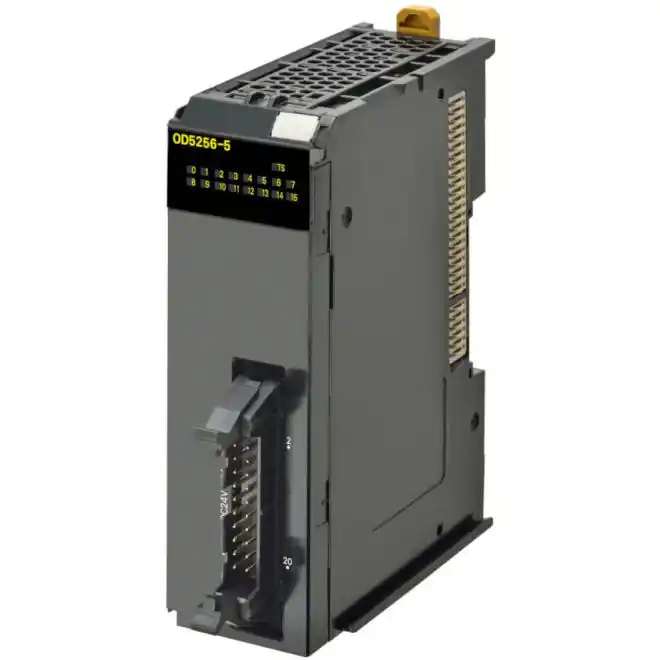

Omron NX-OD5256-5 16-Points Digital Outputs PNP
SKU#:
568307
Omron NX I/O system offers a wide variety of I/O devices. Its ultra-fast internal bus system is synchronized with the Distributed Clock of the EtherCAT network. The resulting system-wide deterministic I/O operation allows machine builders to improve machine production rates and output quality. An EtherNet/IP bus coupler is available for non-synchronous use , e.g. with CJ-series PLC's. Wide variety of slim design, high density remote I/O modules like NX-OD5256-5 for use with Ethernet/IP or EtherCAT master controller units.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | NX-OD5256-5 |
| Manufacturer Alternate Number | NXOD52565 |
| UPC | 4548583552067 |
| Mounting Type | DIN Rail |
| Power Supply Required | Yes |
| Supply Voltage Range | 24VDC |
| Type | Digital Input, Digital Output |
| Terminal Type | Mil Connector |
| Input Signal Type | DC PNP |
| Number of Points | 32 |
| Height (mm) | 100mm |
| Width (mm) | 30mm |
| Depth (Length) (mm) | 71mm |
| Weight (lbs) | 0.19 |
| UOM | ea |
