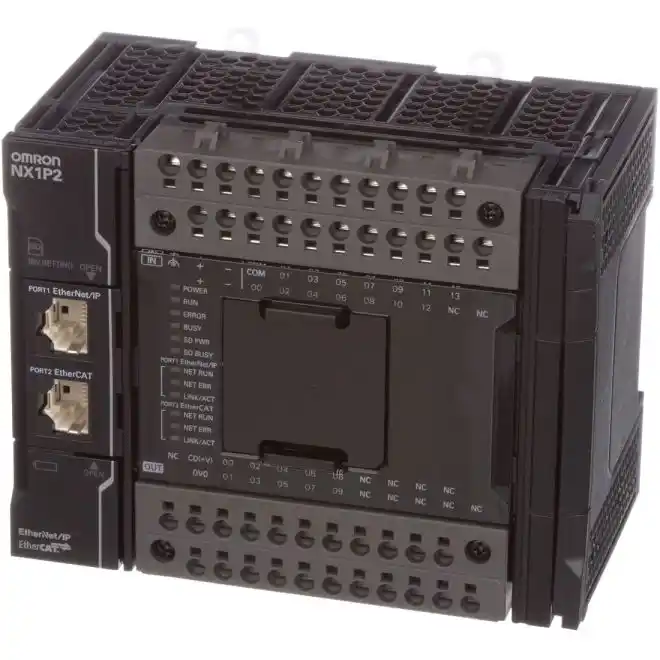

Omron NX1P2-9024-DT1 Machine Automation Controller
SKU#:
566488
Omron NX1P compact in size, powerful in functionality. The NX1P completes the NX/NJ machine controllers family offering same functionality in a compact design. The NX1P provides synchronized control of all machine devices such as motion, I/O, safety and vision under one Integrated Development Environment.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | NX1P2-9024-DT1 |
| Manufacturer Alternate Number | NX1P29024DT1 |
| UPC | 4548583866447 |
| Memory Card Type | SD |
| Total I/O Capacity | 296 points local (808 with NX Coupler) |
| Maximum Number of Units | 8 Local IO Units; 24 total per CPU |
| Min. Cycle Time | 2ms |
| Motion Control Network | EtherCAT |
| Mounting Type | DIN Rail |
| Program Capacity | 1.5MB |
| Programming Connection | Ethernet |
| Programming Language | Ladder / Structured Text / Function Block |
| Total Axes/Point to Point Axes/Coordinated Axes | 4/4/0 |
| Height (mm) | 100mm |
| Width (mm) | 130mm |
| Depth (Length) (mm) | 71mm |
| Weight (lbs) | 1.30 |
| UOM | ea |
