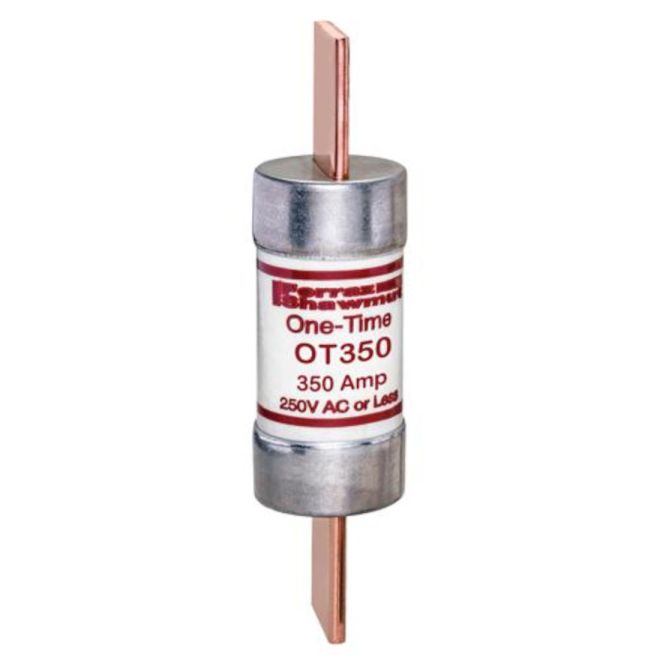

Mersen OT350 Ferraz Class K-5 Power Fuse H219841
SKU#:
111071
Mersen OT, OTN and OTS general purpose fuses provide low cost protection for feeder and branch circuits serving lighting, heating, and other non-motor loads. OT350 fuses will safely interrupt available short circuit currents up to 50,000 amperes in all ratings. OT, OTN and OTS fuses are not rejection fuses - care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN 15 through 60 satisfy the Canadian electrical code requirement for Type "P", low melting-point, non-time-delay fuses. Ferraz Shawmut OT350 is comparable to Reliance 64677-N, Littelfuse NLN350.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | OT350 |
| Manufacturer Alternate Number | H219841 |
| UPC | 782001700461 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 350A |
| RoHS Compliant | Yes |
| Fuse Class | K5 |
| Speed/Characteristic | Fast-Acting |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | Poly Tube |
| Type | Fast Acting |
| Height (mm) | 53mm (2.12") |
| Width (mm) | 53mm |
| Depth (Length) (mm) | 220mm |
| Weight (lbs) | 1.45 |
| UOM | ea |
