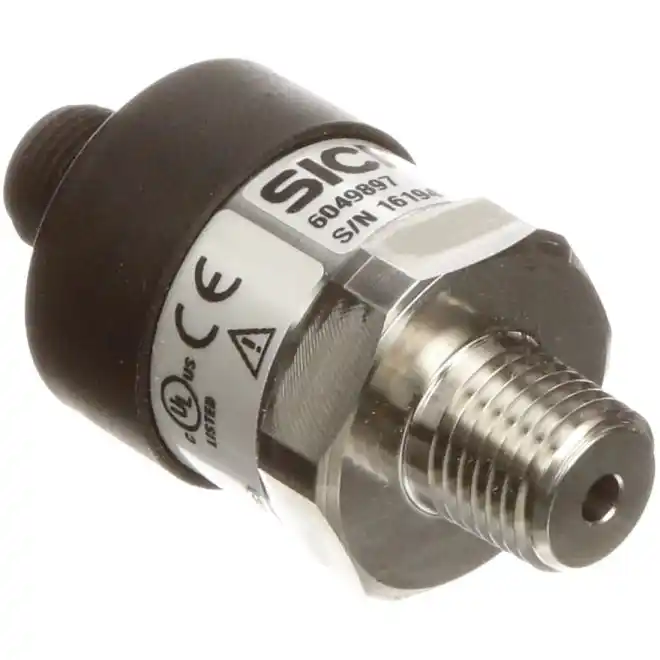

SICK PBT-RP100SN1SS0AMA0Z 6049897 Pressure Sensors
SKU#:
420067
SICK PBT-RP100SN1SS0AMA0Z 6049897 is a universal electronic pressure transmitter used in general industrial applications for pressure measurement of liquid and gaseous fluids. Suitable for standard measuring applications in machine and plant engineering, pressure control systems, hydraulics, pneumatics, etc., it supports a wide variety of configurations and can thus provide the perfect match for individual customer requirements. Its precise and rugged measurement technology, compact dimensions, and quick and simple installation set the PBT apart as a genuinely talented all-rounder. SICK PBT-RP100SN1SS0AMA0Z is comparable to ifm Efector PA3224.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | 6049897 |
| Manufacturer Alternate Number | PBT-RP100SN1SS0AMA0Z |
| Medium | Liquid, Gaseous |
| Pressure Type | Gauge Pressure |
| Measuring Range | 0 psi - 100 psi |
| Output Type | 4 mA - 20 mA, 2-Wire |
| Process Connection | ¼" NPT |
| Material | Stainless Steel |
| Electrical Connection | M12 4-pin Connector |
| Supply Voltage Range | 8VDC - 30VDC, 14VDC - 30VDC |
| Seal | No |
| Power Consumption | Max. 25 mA for Current Output, Max. 8 mA for Voltage Output |
| Pressure Unit | psi |
| IP Rating | IP67 |
| Height (mm) | 48mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 29mm |
| Weight (lbs) | 0.31 |
| UOM | ea |
