SICK PHT-CP015ST10SEAMS0Z 6061830 Pressure Sensors
SKU#:
608312
With its flush-mounted stainless steel membranes and large range of hygienic process connectors, SICK PHT pressure transmitter is ideal for demanding hygienic applications in the food and beverage, pharmaceutical and cosmetics industries. With enhanced process temperatures, resistance to corrosive fluids, cavity-free design with hygienically-graded process connections, the PHT is distinguished by its outstanding functionality and certifications issued by EHEDG and 3-A Sanitary Standards, Inc.
| Brand | SICK |
|---|---|
| Manufacturer Part Number | PHT-CP015ST10SEAMS0Z |
| Manufacturer Alternate Number | 6061830 |
| Medium | Liquid, Gaseous |
| Pressure Type | Gauge Pressure |
| Measuring Range | -30 inHg - 0 psi |
| Output Type | 4 mA - 20 mA, 2-Wire |
| Material | Stainless Steel |
| Electrical Connection | M12 4-pin Connector |
| Supply Voltage Range | 10VDC - 30VDC, 11VDC - 30VDC, 14VDC - 30VDC |
| Seal | EPDM |
| IP Rating | IP67 |

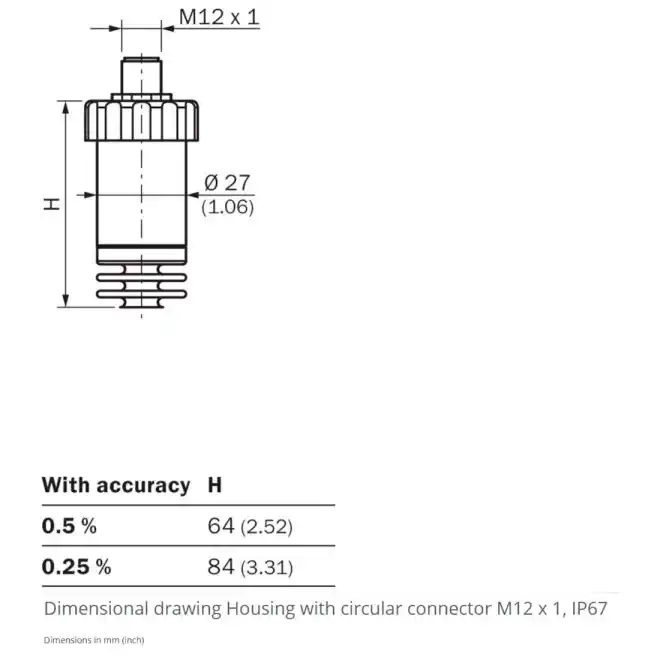

| Height (mm) | 27mm (1.06") |
| Width (mm) | 27mm |
| Depth (Length) (mm) | 84mm |
| Weight (lbs) | 0.96 |
| UOM | ea |
