ifm efector PM1704 Flush pressure sensors
SKU#:
576436

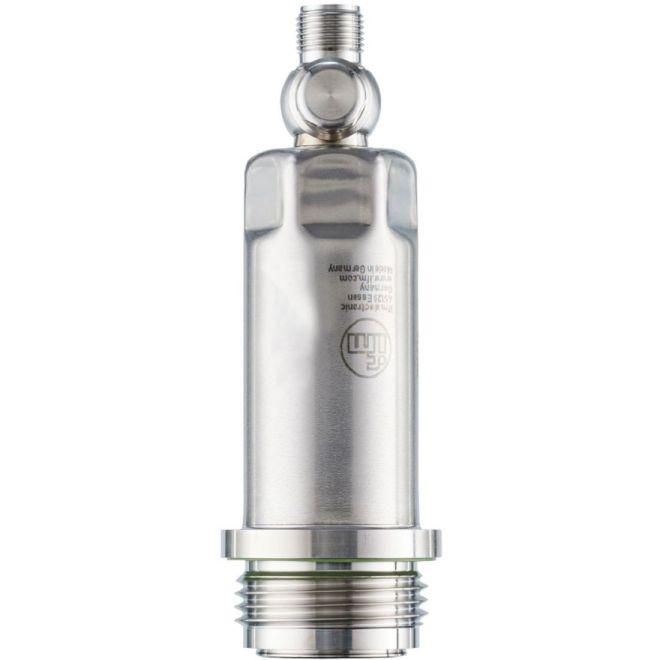

EFFECTOR PM1704 Pressure transmitter Robust stainless steel housing for use in the food and beverage industry, Hygienic, flush design, Resistant to high-pressure cleaning with aggressive cleaning agents, High temperature resistance and high protection rating.
| Brand | EFECTOR |
|---|---|
| Manufacturer Part Number | PM1704 |
| Manufacturer Alternate Number | PM-010-REA01-E-ZVG/US |
| Medium | Liquid, Gaseous |
| Pressure Type | Gauge Pressure |
| Measuring Range | -14.5 to 145 psi |
| Output Type | 4mA - 20mA |
| Process Connection | threaded connection G 1 external Aseptoflex Vario |
| Material | Stainless Steel |
| Electrical Connection | M12 4-Pin Connector |
| Supply Voltage Range | 18VDC - 30VDC |
| Pressure Unit | psi |
| IP Rating | IP67, IP68, IP69K |
| Height (mm) | 111mm |
| Width (mm) | 38mm |
| Depth (Length) (mm) | 38mm |
| Weight (lbs) | 0.68 |
| UOM | ea |
