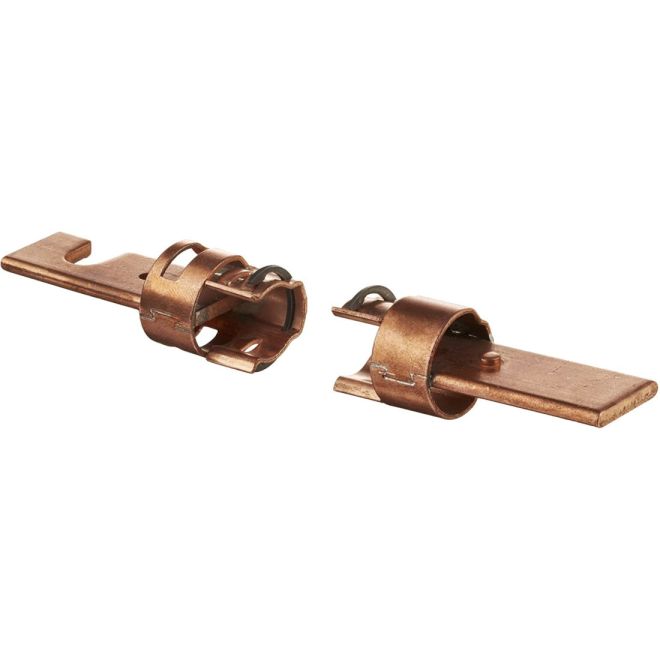

Mersen R132 Ferraz Fuse Reducers 250V 30A to 100A
SKU#:
111213
Mersen R132 fuse reducers allow the use of lower rated fuses in existing equipment having clips with higher ampere ratings. The use of closer rated time-delay fuses can improve circuit protection. For example, renewable or one-time fuses feeding a motor can be replaced with fuses sized closer to the motor nameplate current. Non-rejection reducers will allow Class H, K or R fuses to fit Class H or K clips. Rejection-type reducers will allow only Class R fuses to fit Class R clips or only Class J fuses to fit Class J clips. Class J fuse reducers are not for bolt on applications.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | R132 |
| Manufacturer Alternate Number | V217529 |
| UPC | 782001752378 |
| Rated Voltage AC | 250VAC |
| Rated Current | 30A - 100A |
| Fuse Class | H, K |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 59mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
